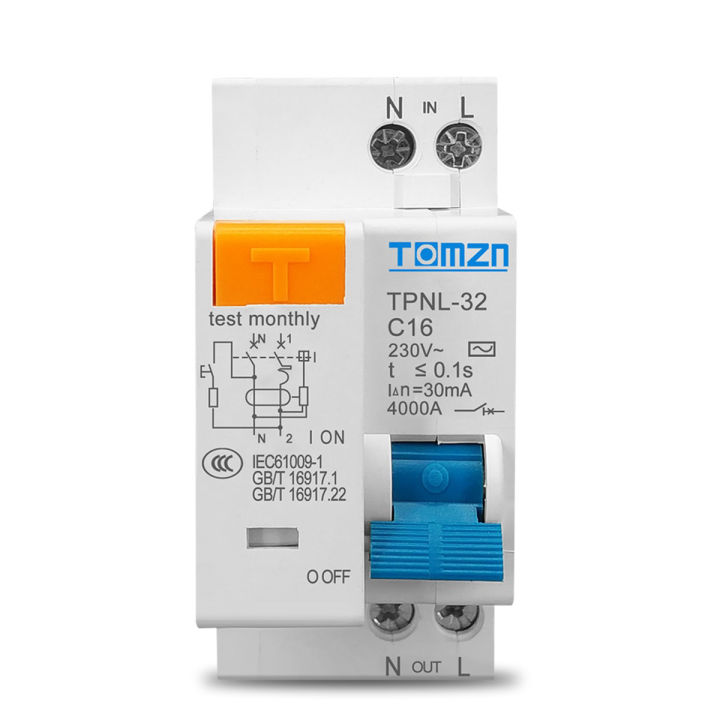

The TPNL Leakage Protective Circuit Breaker (RCBO) is a high-performance electrical safety device designed to provide comprehensive protection for single-phase residential, commercial, and light industrial electrical systems. By integrating overload protection, short-circuit protection, and earth leakage protection into a single compact unit, this RCBO helps prevent electrical accidents, equipment damage, fire hazards, and electric shocks.
Featuring a 30mA residual current sensitivity, dual-pole disconnection, and a 4kA short-circuit breaking capacity, the TPNL RCBO is an ideal choice for modern distribution boards where safety, reliability, and space efficiency are essential.
| Parameter | Specification |
|---|---|
| Product Type | Residual Current Breaker with Overcurrent Protection (RCBO) |
| Brand | TOMZN |
| Model | TPNL-32 C16 |
| Number of Poles | 1P + N (Phase + Neutral) |
| Rated Current | 16A (C Curve — standard for residential/commercial loads) |
| Rated Voltage | 230V AC (50Hz / 60Hz) |
| Leakage Sensitivity | 30mA (High sensitivity standard for human life protection against shock) |
| Leakage Tripping Time | ≤ 0.1 Seconds (Ultra-fast response to safely interrupt current) |
| Short-Circuit Capacity | 4000A (4kA) |
| Protection Functions | Overload, Short Circuit, and Earth Leakage Protection (4-in-1) |

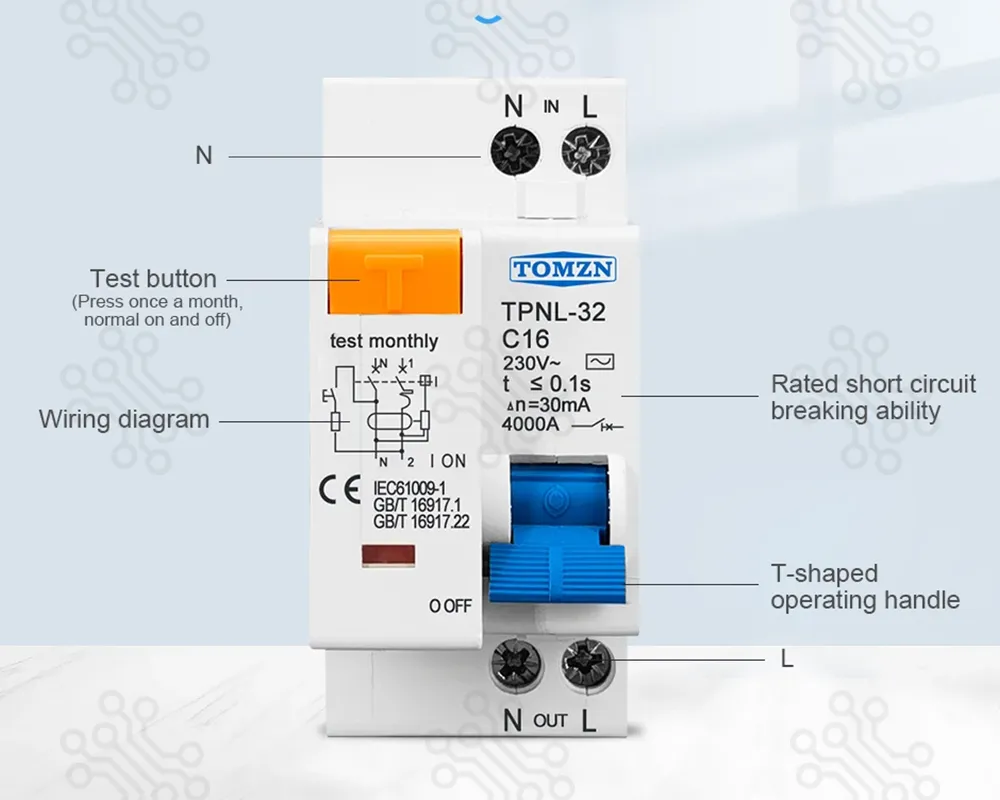

| Test Button | Available (Dedicated manual test button for routine maintenance) |
An RCBO (Residual Current Circuit Breaker with Overcurrent Protection) combines the functions of an MCB (Miniature Circuit Breaker) and an RCD/RCCB (Residual Current Device) into one device.
It protects against:
Unlike conventional circuit breakers, an RCBO continuously monitors current flow and disconnects the circuit immediately when abnormal leakage or overcurrent conditions are detected.
| TESTING CURRENT (A) | RATED VOLTAGE (V) | LIMITED TIME | PRE-ENGAGE RESULT | START SITUATION | NOTE |
|---|---|---|---|---|---|
| 1.13In | all | t≥1h | non-trip | cold state | The current rises steadily to a fixed value within 5s |
| 1.45In | all | t<1h | trip | heat state | Open the supplementary switch, connect the power |
| 2.55In | all | 1s < t < 60s | trip | cold state | Open the supplementary switch, connect the power |
| 5In | all | t≥0.1s | non-trip | cold state | Open the supplementary switch, connect the power |
| 10In | all | t<0.1s | trip | cold state | Open the supplementary switch, connect the power |
The TPNL RCBO continuously compares the current flowing through the live conductor with the current returning through the neutral conductor.
Under normal conditions:
Current entering = Current leaving
If leakage occurs due to:
the current balance is disturbed.
When the leakage exceeds 30mA, the breaker instantly disconnects the circuit to protect users and equipment.
Installation should always be performed by a qualified electrician according to local electrical regulations.
To ensure reliable operation:
Regular testing helps maintain effective leakage protection throughout the product's service life.
