UNI T UTD2102CEX+ 100Mhz 2 Channel Digital Storage Oscilloscope in Bangladesh
UNI T UTD2102CEX+ 100Mhz 2 Channel Digital Storage Oscilloscope in Bangladesh

UNI T UTD2102CEX+ 100Mhz 2 Channel Digital Storage Oscilloscope

SKU: 260510005465

Brand : UNI-T

Warranty : 15 Days

৳ 38650.04

পণ্যের দাম স্থিতিশীল না থাকায়, ওয়েবসাইটে দেয়া পণ্যের মূল্য পরিবর্তন হতে পারে।

পণ্যের দাম স্থিতিশীল না থাকায়, ওয়েবসাইটে দেয়া পণ্যের মূল্য পরিবর্তন হতে পারে।

Add to Wishlist

Category: Digital Oscilloscopes

Share:

Additional Information

Description of UNI T UTD2102CEX+ 100Mhz 2 Channel Digital Storage Oscilloscope

The UNI-T UTD2102CEX+ Oscilloscope is a 100MHz, dual-channel digital storage oscilloscope built for electronics engineers, university labs, repair technicians, embedded developers, and industrial troubleshooting teams across Bangladesh. As part of UNI-T's UTD2000CEX+ series, it combines 100MHz bandwidth, 1GSa/s real-time sampling, 64 kpts maximum memory depth, and a waveform capture rate of 5,000 wfms/s.

Whether you're diagnosing a faulty SMPS, verifying PWM signals on an Arduino or ESP32 project, or teaching electronics in a lab, this UNI-T 100MHz digital storage oscilloscope combines a bright 7-inch display with automated measurement tools to speed up your workflow - making it one of the best budget 100MHz oscilloscopes available in Bangladesh today.

Key Features of UNI-T UTD2102CEX+ Digital Oscilloscope

  • 100MHz bandwidth with 2 analog channels — wide enough for most analog, digital, and mixed-signal debugging tasks
  • 1GSa/s real-time sampling rate — captures fast transients and short-duration events without missing detail
  • 64kpts waveform memory depth — retains long waveform records for detailed post-capture analysis
  • 7-inch TFT LCD display (800×480) — clear, high-resolution screen for easier waveform reading in the field or lab
  • FFT and math analysis functions — built-in frequency-domain analysis for signal and noise diagnostics
  • USB OTG connectivity & PC control — export data and control the scope remotely from a computer
  • 34 automatic waveform measurements — instantly read voltage, frequency, rise time, and more without manual cursor work
  • Multiple trigger modes (Edge, Pulse, Video) — isolate the exact signal event you need to inspect

Technical Specifications

Parameter Details
Bandwidth 100MHz
Channels 2
Sample Rate 1GSa/s
Memory Depth 64kpts
Rise Time ≤3.5ns
Waveform Capture Rate >5000 wfms/s
Display 7-inch TFT LCD
Interface USB OTG
Voltage Scale 1mV/div ~ 20V/div
Time Base 2ns/div ~ 50s/div

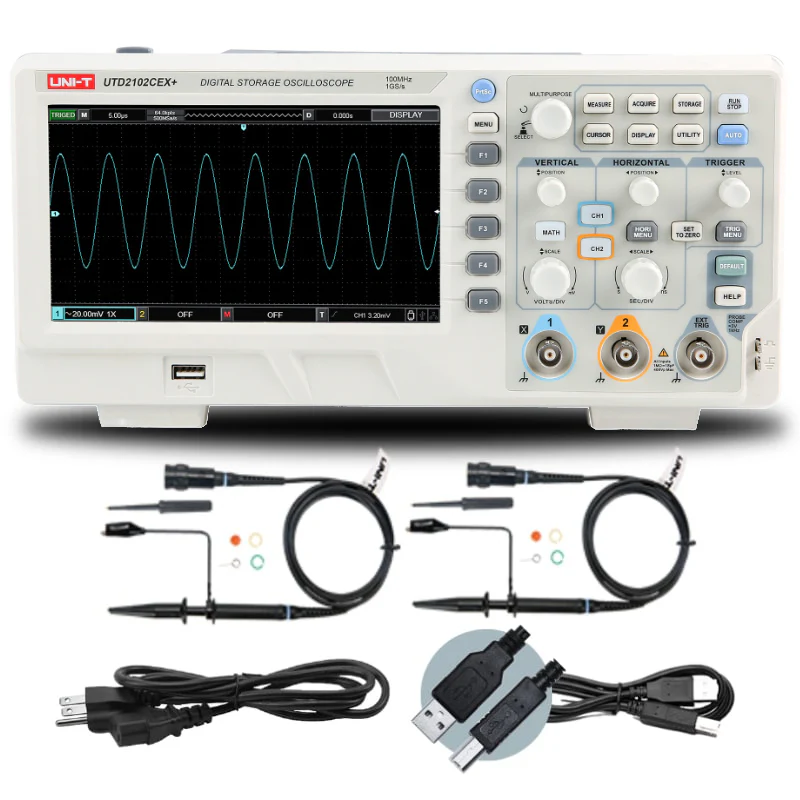

Included Accessories

  • 2× Passive probes (1×/10× switchable)
  • USB cable
  • Power cable
  • User manual & software

Applications & Use Cases

  • Arduino & ESP32 debugging — inspect digital logic levels, timing, and communication signals (I2C, SPI, UART) during firmware development
  • SMPS and inverter repair — trace switching waveforms and ripple to pinpoint faults in power supplies and inverters
  • Signal waveform analysis — use FFT and 34 automatic measurements to evaluate signal quality and frequency components
  • Embedded system development — verify clock signals, PWM outputs, and sensor data during hardware bring-up
  • Educational lab experiments — an accessible, easy-to-read scope for teaching electronics fundamentals and circuit theory
  • Audio circuit testing — check amplifier output, distortion, and waveform shape in audio electronics
  • PWM and sensor diagnostics — validate duty cycle and timing accuracy in motor control and sensor-driven circuits

Documentation & Technical Resources

For in-depth operational guides, technical specs, and official software updates, feel free to check out the UNI-T UTD2000CEX+ Official Product Manual & Datasheet. You can also watch a practical hands-on video demonstration of the unit in action on YouTube.

Related Digital Oscilloscopes

If you are comparing digital oscilloscopes, you can also explore the Hantek DSO5202P Digital Oscilloscope 200MHz 2 Channels or browse TechShopBD's complete Digital Oscilloscopes category for other models and specifications.

Buy UNI-T UTD2102CEX+ Online in Bangladesh at TechShopBD

When shopping for test and measurement instruments in Dhaka, finding genuine hardware is key. At TechShopBD, you can order the authentic UNI-T UTD2102CEX+ Oscilloscope for sale with absolute peace of mind. Enjoy our official product warranty, vast inventory of electronics components, and fast nationwide home delivery with hassle-free cash on delivery options across all 64 districts in Bangladesh.
