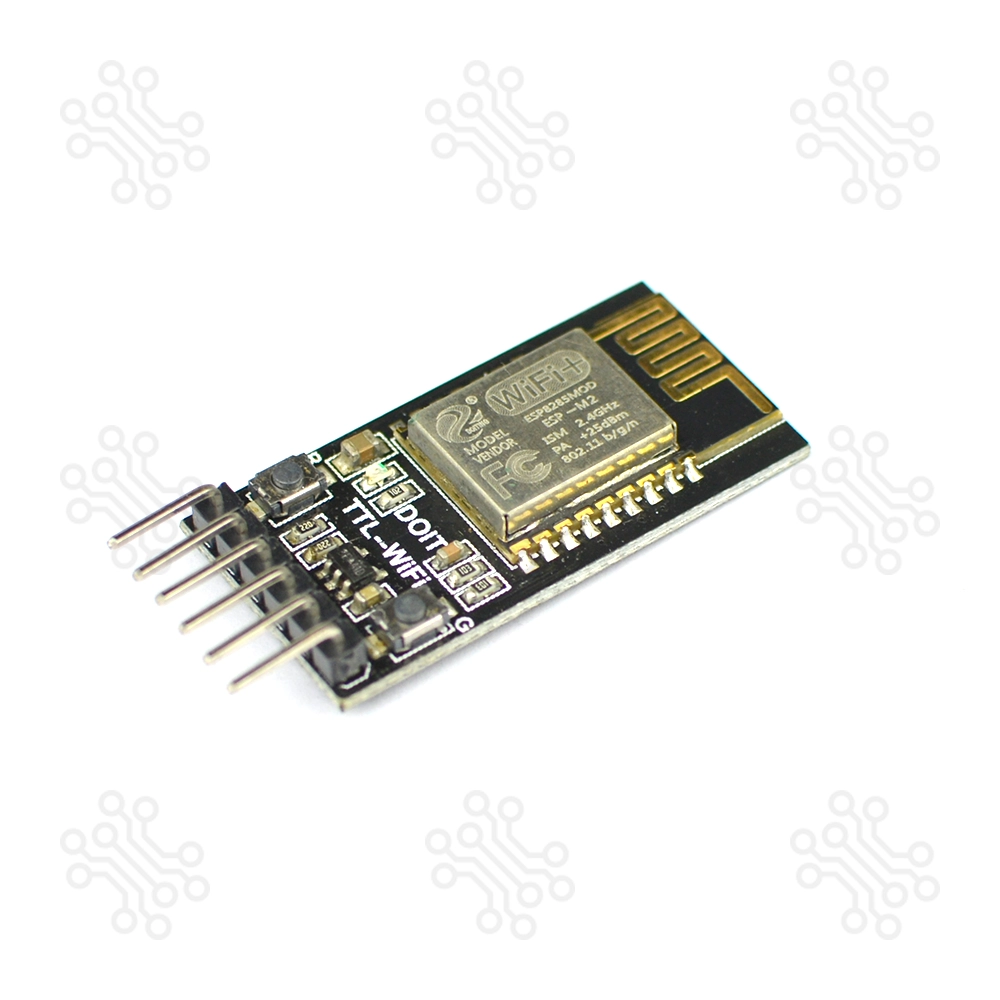

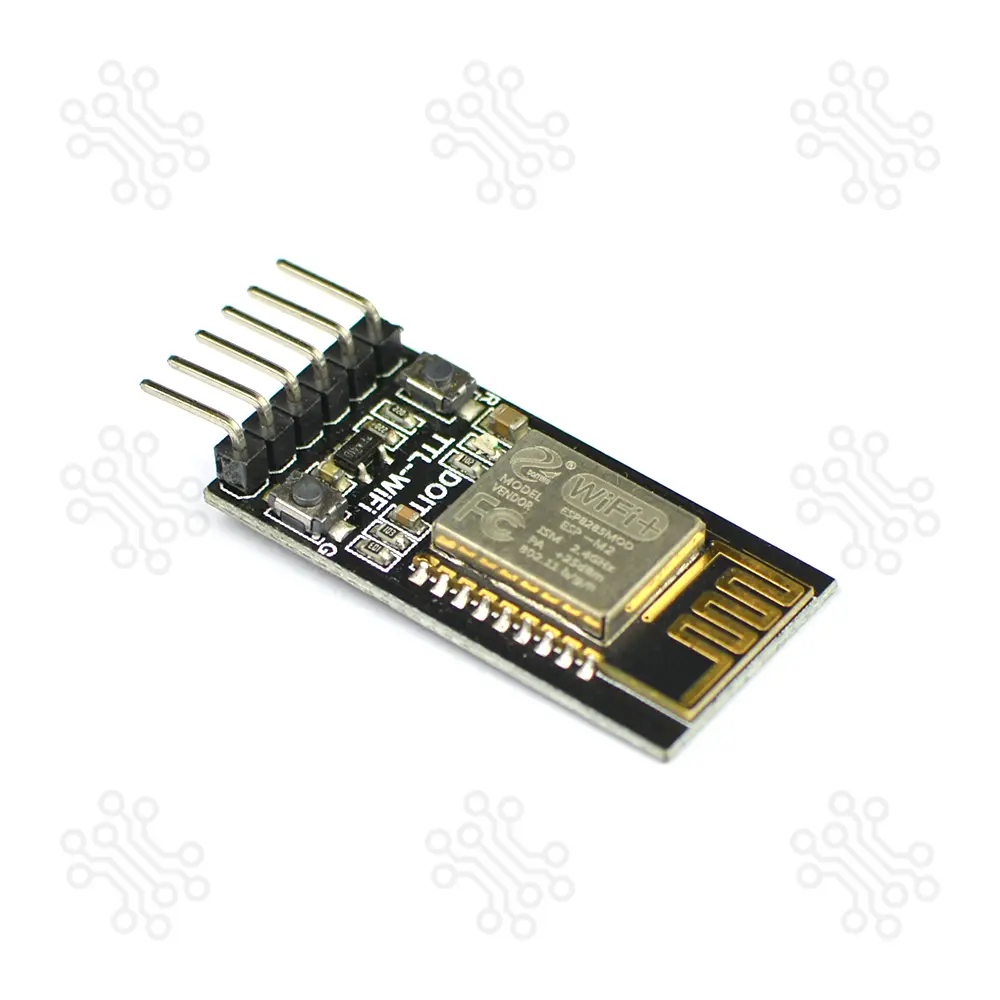

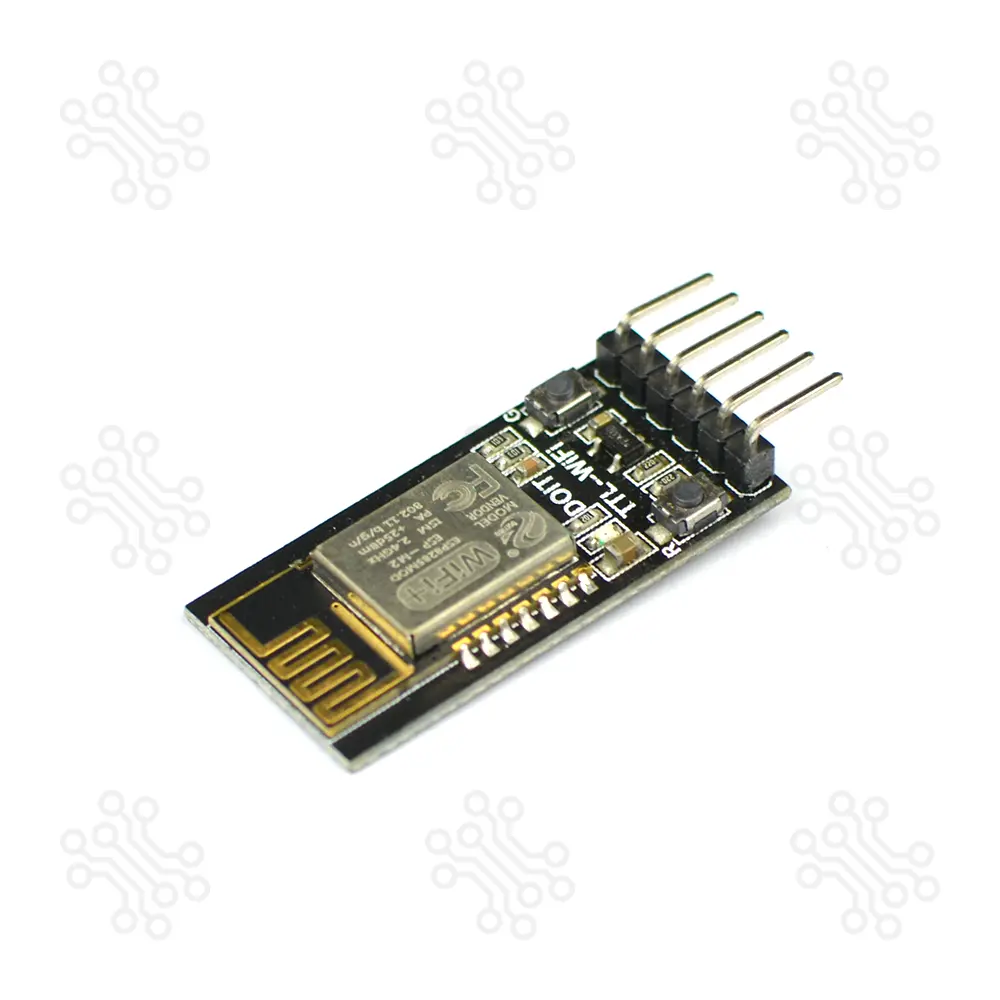

The WiFi Module DT 06 is a high-performance TTL-to-WiFi module developed on the ESP-M2 platform. It integrates a 32-bit Tensilica L106 processor, Wi-Fi transceiver, and memory, supporting real-time serial data transmission over WiFi. Operating in the 2.4 GHz ISM band with 802.11 b/g/n protocols, it provides stable, low-power, and cost-effective wireless connectivity.
The WiFi Module DT 06 features optimized firmware for high-speed serial communication, with advanced reconnection mechanisms in WiFi STA and TCP Client modes for stable, uninterrupted data transmission. Supporting IEEE802.11 b/g/n/e/i and a full TCP/IP stack, it can add WiFi functionality to existing devices or act as an independent network controller, offering versatile connectivity at a competitive price.
| Type | Item | Parameters |
|---|---|---|
| Wi-Fi | Frequency | 2.4G ~ 2.5G (2400M ~ 2483.5M) |
| Transmit power | 802.11b: +20 dBm 802.11g: +17 dBm 802.11n: +14 dBm |
|
| Receiving sensitivity | 802.11b: -91 dBm (11Mbps) 802.11g: -75 dBm (54Mbps) 802.11n: -72 dBm (MCS7) |
|
| Antenna | PCB onboard antenna | |
| Hardware |
CPU | Tensilica L106 32-bit MCU |
| Peripheral | UART / EN / STATE | |
| Working voltage | 3.3V | |
| Working current | Average current: 80 mA | |
| Working temperature | -40°C ~ 125°C | |
| Environment Temperature | -40°C ~ 125°C | |
| Size | 34 mm × 17 mm × 4 mm |

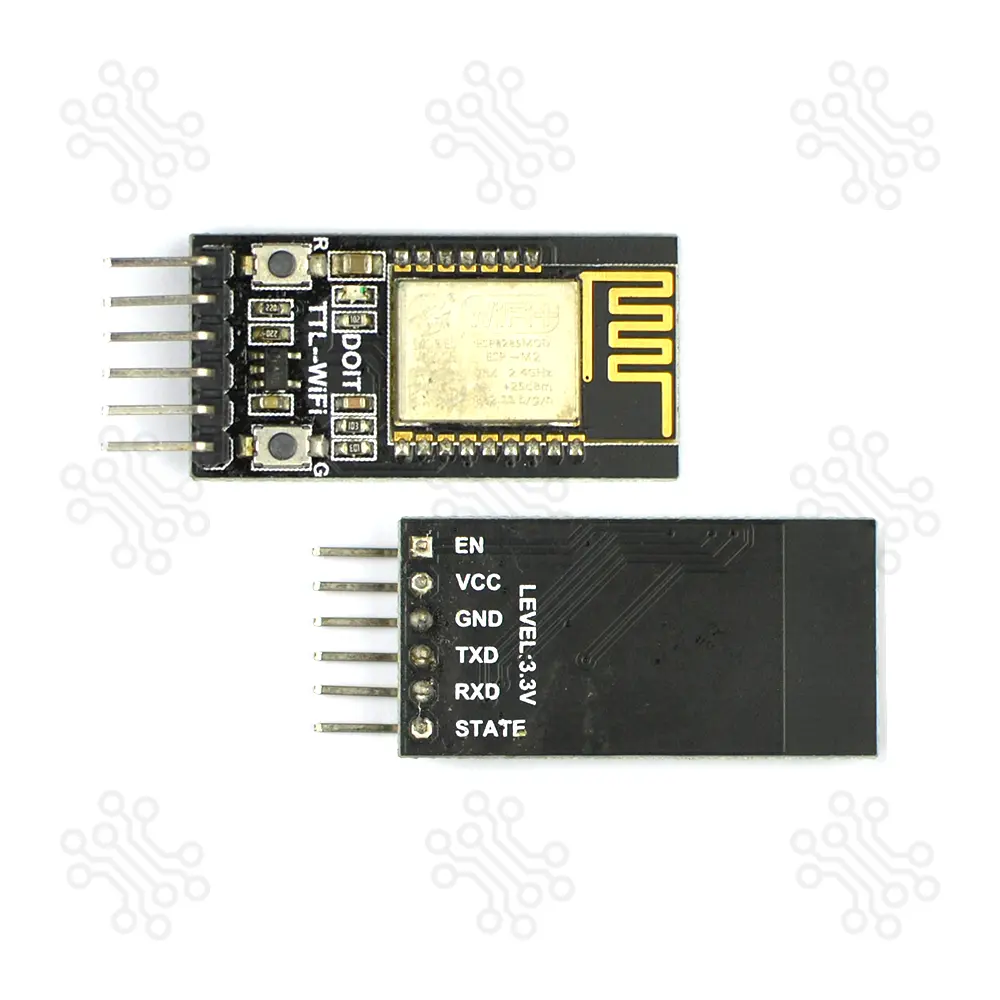

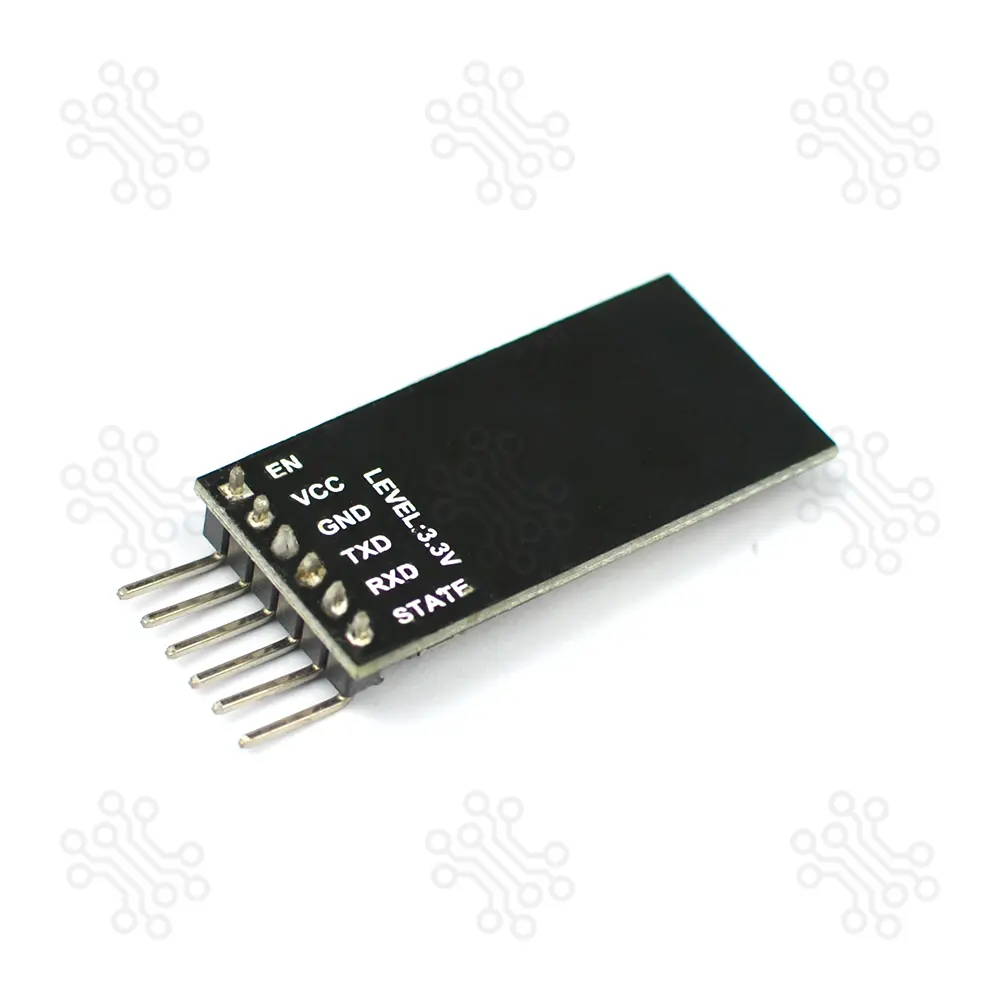

| Num | Pin Name | Type | Description / Function |
|---|---|---|---|
| 1 | STATE | I/O | Indicates the Wi-Fi connection status (Connected / Disconnected). Typically used for an LED or as an input to an MCU. |
| 2 | RXD | I/O | Receives serial data. Used for programming, AT commands, or sending data from an MCU. |
| 3 | TXD | I/O | Sends serial data. Used for debugging or communication with an MCU. |
| 4 | GND | Power | Ground pin. Must be connected to the power supply and MCU GND. |
| 5 | VCC | Power | 3.3V DC power input. 5V should not be applied directly. |
| 6 | EN (CH_PD) | Control | Enables or disables the module. HIGH (3.3V) turns it on, LOW turns it off. |
The module operates within a voltage range of 3.0V to 3.6V, making it compatible with standard 3.3V logic systems. It draws approximately 160 mA during active transmission and less than 10 µA in deep sleep mode, enabling long battery life in low-power applications such as wireless sensors or wearable devices.
Efficient power management features allow developers to optimize energy usage through sleep modes, dynamic clock scaling, and peripheral control.
The DT-06 module includes a built-in HTTP web server for parameter configuration.
1 × WiFi Module DT 06
