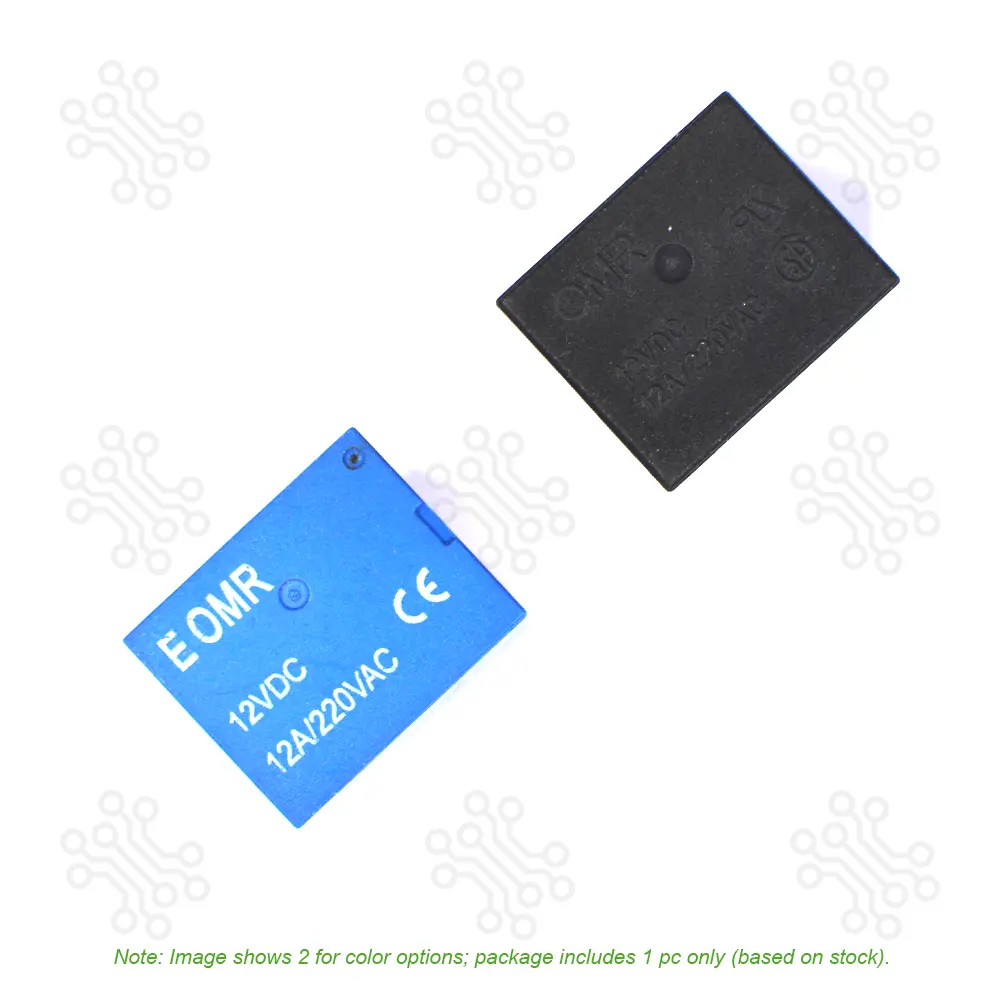

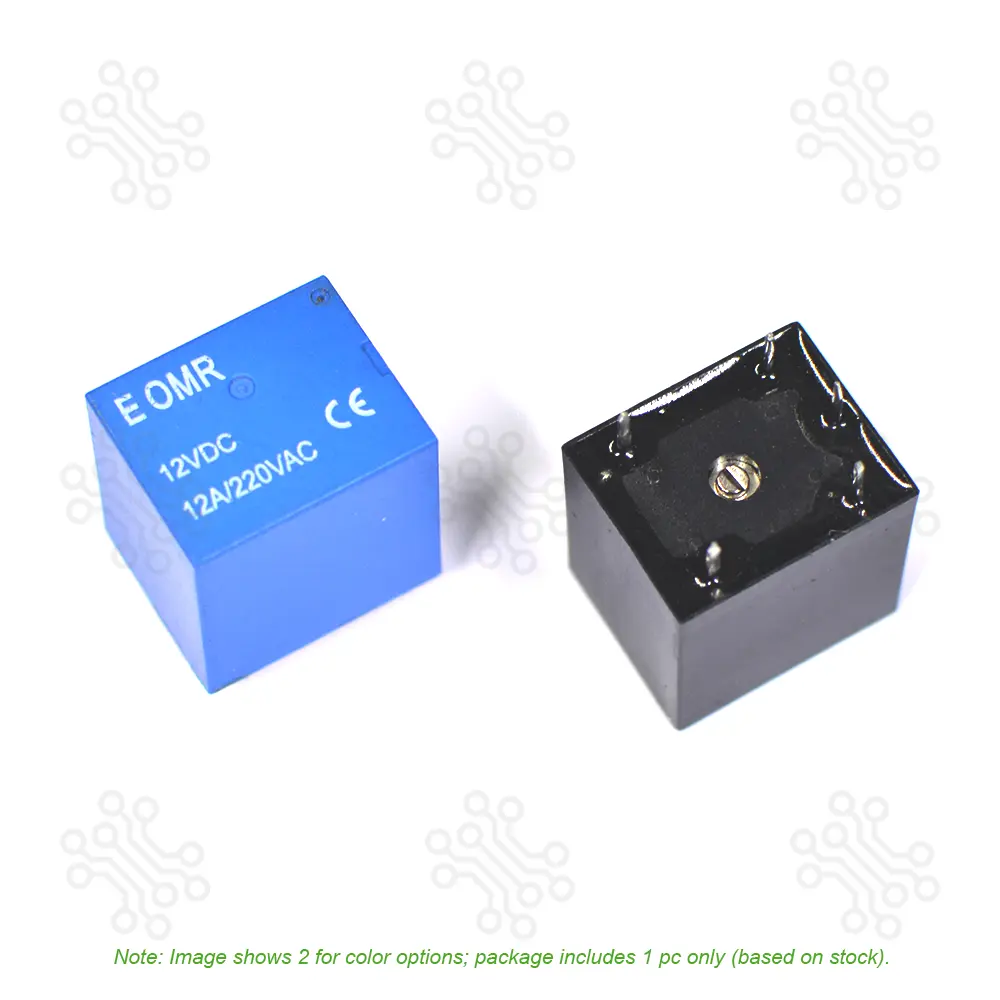

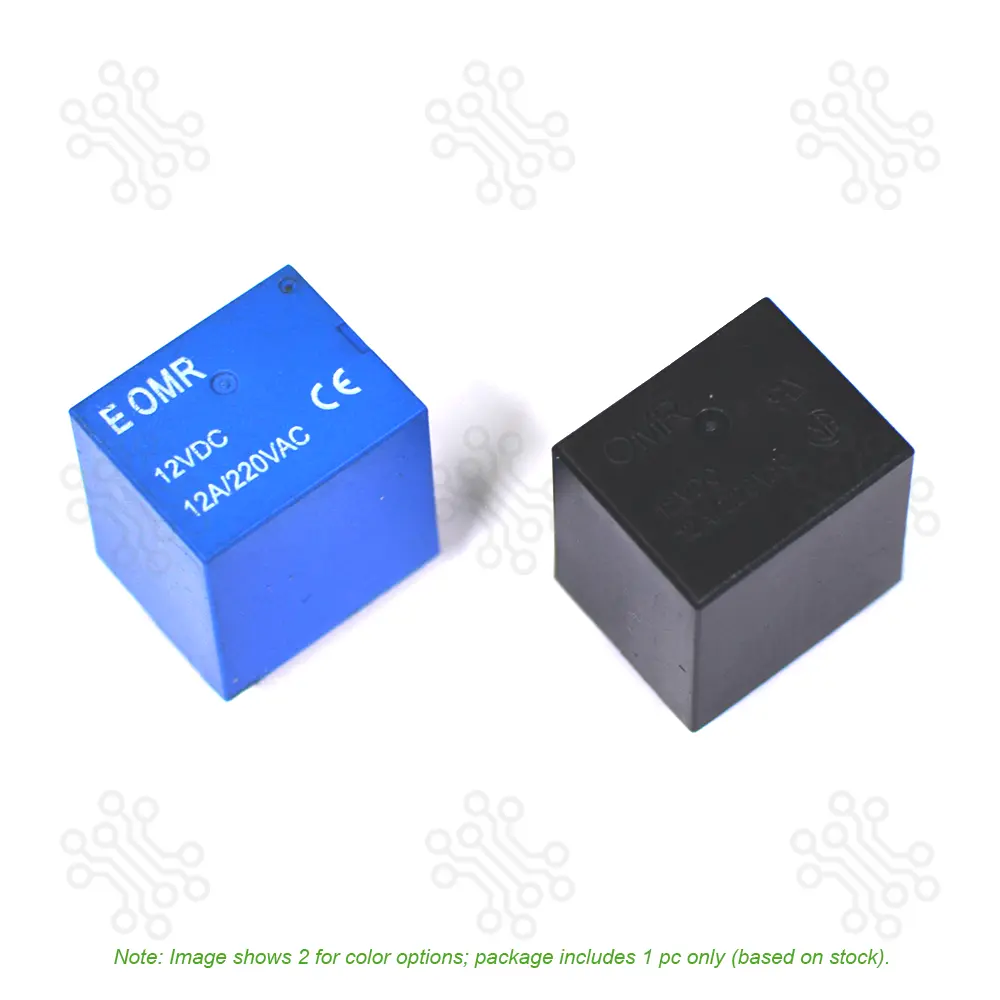

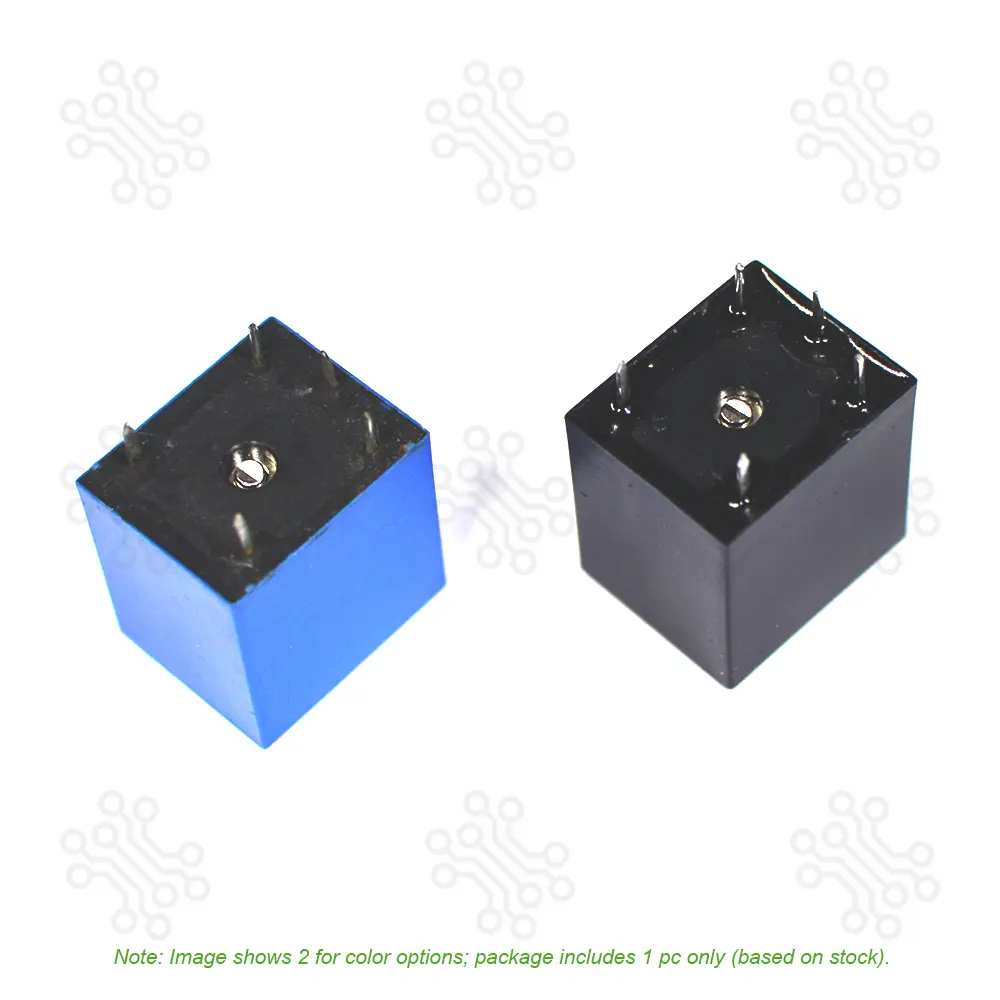

The 12V OMR Relay is a high-quality electromagnetic switching device designed for reliable control of electrical circuits. It allows low-power signals to safely control high-power loads, making it ideal for automation, industrial control, and electronic applications.
Built with durable materials and precision engineering, this relay ensures stable performance, long operational life, and efficient switching under various conditions.
| Parameter | Specification |
|---|---|
| Coil Voltage | 12V DC |
| Contact Type | SPDT / DPDT (model dependent) |
| Rated Current | 10A |
| Rated Voltage | 220V AC |
| Coil Resistance | Approx. 270Ω (typical) |
| Pickup Voltage | ≤ 75% of rated voltage |
| Dropout Voltage | ≥ 10% of rated voltage |
| Operating Time | ≤ 10 ms |
| Release Time | ≤ 5 ms |
| Insulation Resistance | ≥ 100MΩ |
| Operating Temperature | -40°C to +85°C |
The relay operates by energizing an internal coil with 12V DC. When current flows through the coil, it generates a magnetic field that pulls the internal switch contacts, changing their position. This allows control of high-voltage or high-current circuits using a low-power signal.
TechShopBD offers up to one year of warranty and replacement support for its products, depending on the supplier(s) and product(s). The specific warranty duration for each product can be found on the respective product page. To be eligible for warranty and replacement support, customers must agree to our terms and conditions.
Note: This item is non-returnable. If this item arrives damaged or is not functioning properly, please don’t hesitate to contact us to determine if further action is required.
Our engineers are available to assist you. If you have any queries, please leave a comment below or call 09678110110 from 09:00 am to 06:00 pm (7 days a week). You can also reach us via WhatsApp or Facebook Inbox
Ratings and 0 Reviews
Reviews (0)
No reviews yet. Be the first to review this product!
Can this relay be operated below 12v?
By Craftsman on 13 Aug 2018
No.
By TechShopBD on 14 Aug 2018
i purchased a relay from here. but i can't set it to vero board.because there is no sign about which is 'NO' or'NC' or 'COIL’ or 'COM'. So, please give me a diagram of 12v relay 5 pin with picture.
By Shiblo on 14 Jul 2017
Please see here. http://www.antel.cn/product_show.asp?CID1=39&CID2=261&ID=9418
By TechShopBD on 16 Jul 2017
can i provide Nominal Voltage: ac 220v and Switching Voltage:12v dc
By ferdous11 on 01 Jul 2017
Can it be used to convert 220V AC to 12 Volt DC instead of using 4 1N4007 diodes?
By ahmed777 on 25 Dec 2016
Sorry for that comment. I misunderstood relays as bridge rectifier previously. But now I know what does a relay do.
By TechShopBD on 12 Jan 2017
If you have 12v DC Relay 5Amp ,please share the link.
By M.ARFAT on 08 Oct 2015
No. Sorry. The maximum switching current of this one is 12A.
By TechShopBD on 08 Oct 2015
