Relay Module 2 Channel 12V in Bangladesh
Relay Module 2 Channel 12V in Bangladesh

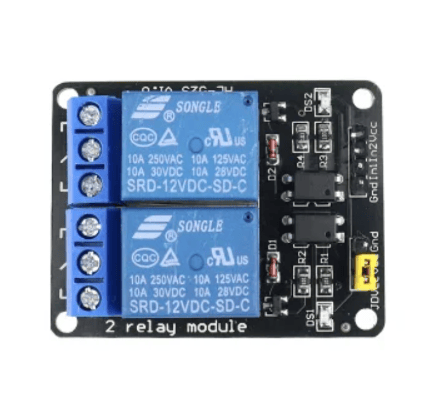

Relay Module 2 Channel 12V

SKU: 251009005055

Warranty : 3 Days

৳ 190.04

Add to Wishlist

Category: Relay

Share:

Additional Information

Frequently Bought Together

Description of Relay Module 2 Channel 12V

The 12V Dual Channel Relay Module (Low-Level Trigger) is a reliable solution for controlling high-power AC and DC electrical loads from a microcontroller or development board. It features two independent 10A relays that can switch devices such as lights, fans, motors, pumps, solenoids, and other electrical equipment.

This module uses an Active LOW (Low-Level Trigger) input, meaning each relay is activated by applying a LOW (GND) signal to the corresponding input pin. Built-in back EMF protection and freewheeling diodes help protect the controlling microcontroller from voltage spikes generated by inductive loads. High-quality screw terminals, LED status indicators, and mounting holes make installation quick and convenient for automation, robotics, Arduino, ESP32, Raspberry Pi, PLC, and industrial control projects.


Feature

  • Low-Level Trigger (Active LOW) input control
  • Operating Voltage: 12V DC
  • 2 Independent Relay Channels
  • Relay Rating: 10A @ 250VAC or 10A @ 30VDC
  • Controls AC and DC loads including motors, lights, fans, solenoids, pumps, and other electrical devices
  • Built-in Back EMF Protection
  • Integrated Freewheeling Diodes for controller protection
  • High-quality C, NO, NC screw terminals
  • LED indicators for each relay status
  • Standard header pins for easy microcontroller connection
  • Mounting holes for secure installation

Technical Specification

Parameter Specification
Relay Channels 2
Operating Voltage 12V DC
Trigger Type Low-Level Trigger (Active LOW)
Trigger Input Voltage GND
Relay Contact Rating 10A @ 250VAC
Relay Contact Rating (DC) 10A @ 30VDC
Driver Current 15–20mA per Relay
Output Type NO / NC / COM
Protection Back EMF Protection, Freewheeling Diode
Terminal Type KF301 Screw Terminal
Dimensions 49 × 37.5 × 17 mm
Weight 27 g

How the Low-Level Trigger Work

This module uses an Active LOW (Low-Level Trigger) control method.

  • Apply LOW (GND) to IN1 → Relay 1 turns ON
  • Remove the LOW signal from IN1 → Relay 1 remains OFF
  • Apply LOW (GND) to IN2 → Relay 2 turns ON
  • Remove the LOW signal from IN2 → Relay 2 remains OFF

The relay is activated only when the corresponding input pin is pulled to GND (LOW). Without a LOW trigger signal, the relay stays in its default OFF state.


Module Interface

Pin Description
VCC 12V Power Supply (+)
GND Power Supply Ground (-)
IN1 Relay Channel 1 Low-Level Trigger Input
IN2 Relay Channel 2 Low-Level Trigger Input

Application

  • Arduino Projects
  • ESP32 / ESP8266 Automation
  • PLC Systems
  • Smart Home Automation
  • Industrial Control
  • Motor Control
  • Lighting Control
  • Pump & Solenoid Switching
  • Robotics Projects

Package Includes

  • 1 × 12V Dual Channel Relay Module (Low-Level Trigger)
