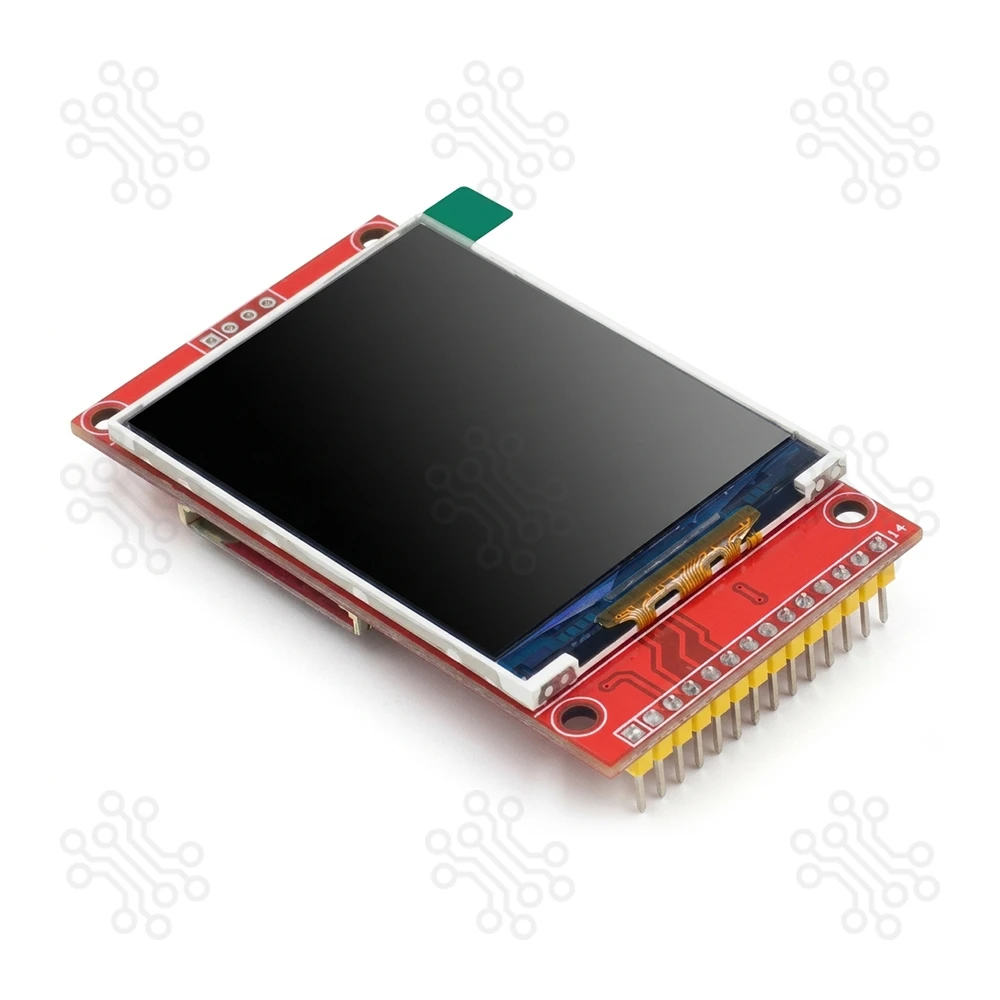

The TFT SPI LCD Display 2.4 Inch is a compact, high-performance TFT display module featuring a 320 × 240 pixel resolution and 16-bit RGB (65K Colors) for vibrant and sharp graphics. Powered by the ILI9341 display controller, this module communicates through a 4-wire SPI interface, requiring only a few microcontroller I/O pins for operation, making it ideal for Arduino, ESP32, STM32, Raspberry Pi Pico, and other embedded systems.

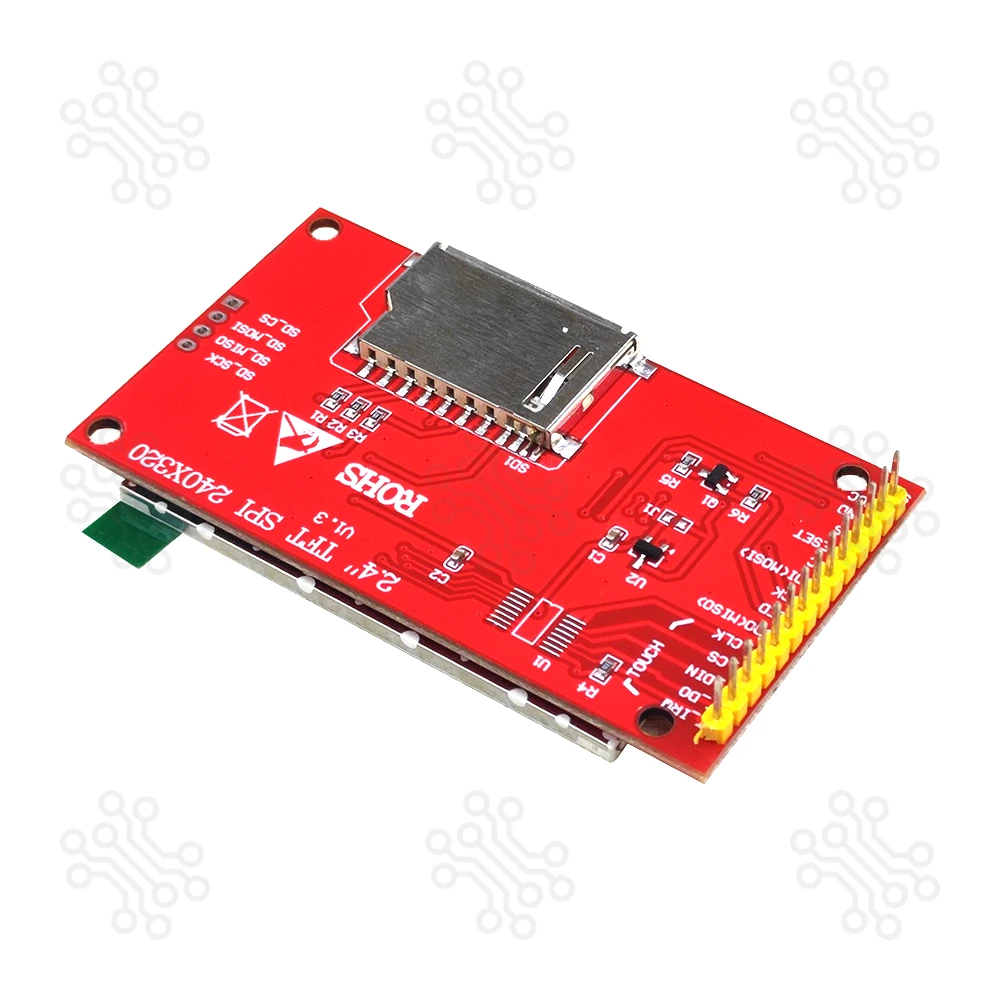

The module also includes an SD card slot for convenient external storage and is available with an optional resistive touch panel for interactive applications. With wide operating voltage support and reliable industrial-grade construction, it is suitable for DIY electronics, industrial control systems, and embedded display projects.
| Parameter | Specification |
|---|---|
| Display Size | 2.4 Inch |
| Screen Type | TFT LCD |
| Resolution | 320 × 240 Pixels |
| Display Color | RGB 65K (16-bit) |
| Driver IC | ILI9341 |
| Interface | 4-Wire SPI |
| Operating Voltage (VCC) | 3.3V – 5V DC |
| Logic Level | 3.3V TTL |
| Active Display Area | 36.72 × 48.96 mm |

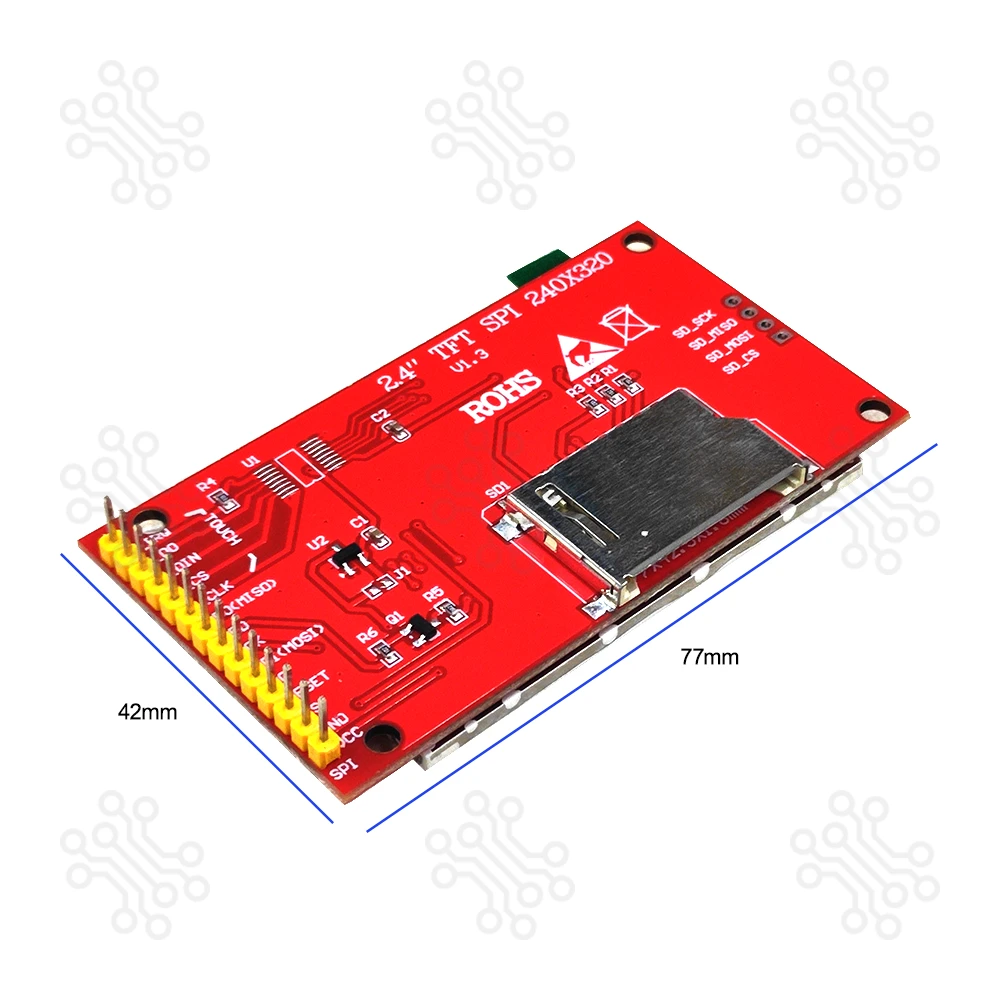

| Module Dimensions | 77 × 42 mm |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +70°C |

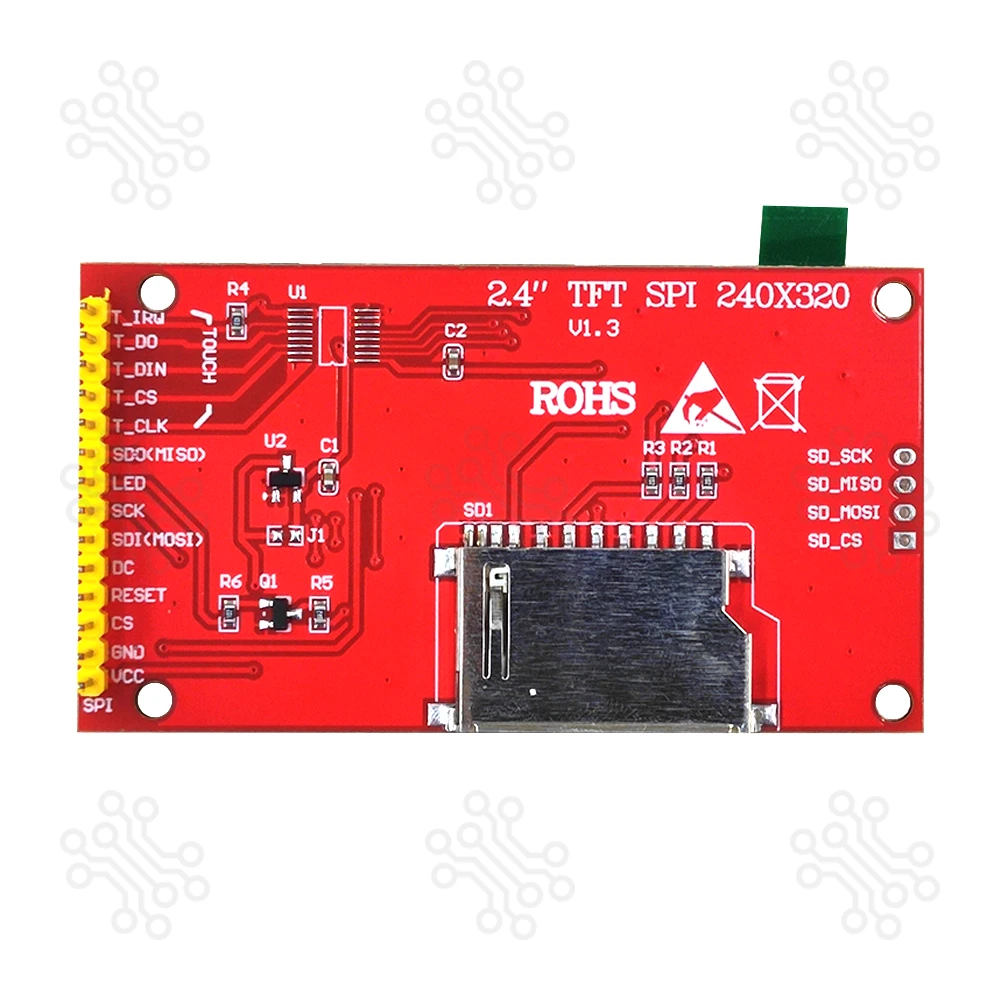

| Pin | Label | Description |
|---|---|---|
| 1 | VCC | 3.3V / 5V Power Input |
| 2 | GND | Ground |
| 3 | CS | LCD Chip Select (Active Low) |
| 4 | RESET | LCD Reset (Active Low) |
| 5 | DC/RS | Data / Command Selection |
| 6 | SDI (MOSI) | SPI Data Input |
| 7 | SCK | SPI Clock |
| 8 | LED | Backlight Control |
| 9 | SDO (MISO) | SPI Data Output (Optional) |
| 10 | T_CLK | Touch SPI Clock |
| 11 | T_CS | Touch Chip Select |
| 12 | T_DIN | Touch SPI Data Input |
| 13 | T_DO | Touch SPI Data Output |
| 14 | T_IRQ | Touch Interrupt Output |
The display communicates using a 4-wire SPI interface, allowing fast data transfer while minimizing GPIO usage. The optional touch controller uses a separate SPI interface and interrupt pin for touch detection.
