The ESP32 Development Board (38-Pin) is a versatile development board built around the ESP-WROOM-32 module from Espressif System. It is designed to support modern embedded and wireless projects by combining a powerful processing unit with integrated connectivity features. With its well-organized pin layout and onboard components, the board is suitable for both rapid prototyping and structured development work.
This board includes a dual-core 32-bit processor, along with integrated Wi-Fi and Bluetooth, allowing seamless communication in connected applications. The onboard CP2102 USB-to-UART converter ensures stable and straightforward programming through a standard USB connection. Due to its balanced performance, low power requirements, and broad software compatibility, the ESP32 Development Board is widely used in IoT systems, automation solutions, robotics projects, and general embedded development.
When comparing the ESP32 to the Arduino, Atmel, or PIC, you'll find that the ESP32 Devkit V1 offers more pins, a faster processor, and superior overall performance.
If you’re just getting started, check out our ESP32 Tutorials in Bangla.
| Parameter | Function |
|---|---|
| Microcontroller | ESP-WROOM-32 |
| Processor | Xtensa dual-core 32-bit LX6 |
| Clock Speed | 240 MHz |
| RAM | 520 KB SRAM, 448 KB ROM, 16 KB SRAM in RTC |
| Flash Memory | 4 MB |
| WiFi | 802.11b/g/n |
| Bluetooth | V4.2 |
| GPIOs | 25 |
| Antenna | On-board PCB antenna |
| Programming Port | Micro USB |
| USB to UART | CP2102 |

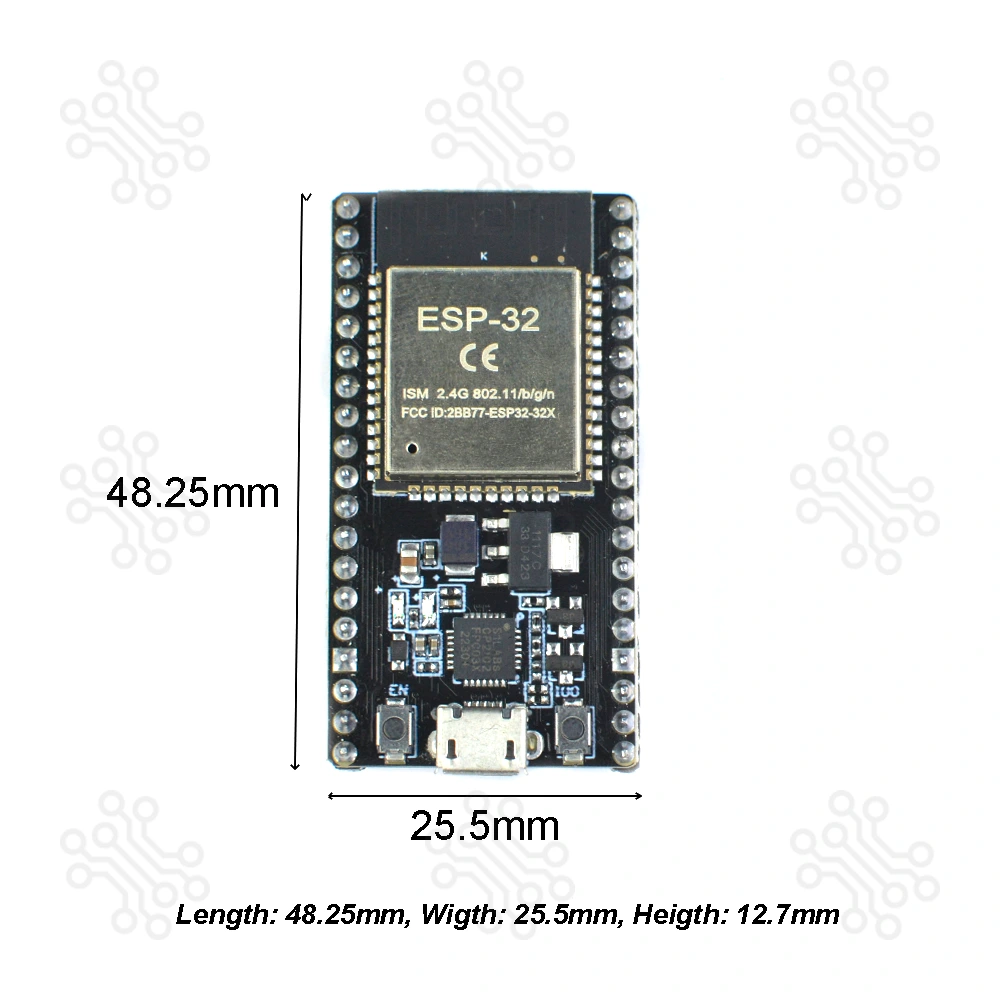

| Dimensions | 49 × 26 mm (±2) |
Compared to others
ESP32 Development Board CP2102 Chip 38 Pin is a powerful dual-core board with Wi-Fi and Bluetooth, offering many GPIO pins for complex IoT projects. ESP8266 NodeMCU V2 is a simple single-core Wi-Fi board with fewer pins, suitable for basic IoT tasks. Arduino UNO is a beginner-friendly board with no built-in wireless, slower speed, and limited pins, ideal for basic electronics and prototyping.
| Feature | ESP32 38 Pin | ESP8266 | Arduino UNO |
|---|---|---|---|
| Clock Speed | 240 MHz | 160 MHz | 16 MHz |
| WiFi | Yes | Yes | No |
| Bluetooth | Yes | No | No |
| Memory | 520 KB SRAM, 4 MB Flash | 160 KB SRAM, 4 MB Flash | 2 KB SRAM, 32 KB Flash |
| GPIOs | 25 | 17 | 20 |
J1
| No. | Name | Type | Function |
|---|---|---|---|
| 1 | 3V3 | P | 3.3 V power supply |
| 2 | EN | I | CHIP_PU, Reset |
| 3 | VP | I | GPIO36, ADC1_CH0, S_VP |
| 4 | VN | I | GPIO39, ADC1_CH3, S_VN |
| 5 | IO34 | I | GPIO34, ADC1_CH6, VDET_1 |
| 6 | IO35 | I | GPIO35, ADC1_CH7, VDET_2 |
| 7 | IO32 | I/O | GPIO32, ADC1_CH4, TOUCH_CH9, XTAL_32K_P |
| 8 | IO33 | I/O | GPIO33, ADC1_CH5, TOUCH_CH8, XTAL_32K_N |
| 9 | IO25 | I/O | GPIO25, ADC2_CH8, DAC_1 |
| 10 | IO26 | I/O | GPIO26, ADC2_CH9, DAC_2 |
| 11 | IO27 | I/O | GPIO27, ADC2_CH7, TOUCH_CH7 |
| 12 | IO14 | I/O | GPIO14, ADC2_CH6, TOUCH_CH6, MTMS |
| 13 | IO12 | I/O | GPIO12, ADC2_CH5, TOUCH_CH5, MTDI |
| 14 | GND | G | Ground |
| 15 | IO13 | I/O | GPIO13, ADC2_CH4, TOUCH_CH4, MTCK |
| 16 | D2 | I/O | GPIO9, D2 2 |
| 17 | D3 | I/O | GPIO10, D3 2 |
| 18 | CMD | I/O | GPIO11, CMD 2 |
| 19 | 5V | P | 5 V power supply |
J3
| No. | Name | Type | Function |
|---|---|---|---|
| 1 | GND | G | Ground |
| 2 | IO23 | I/O | GPIO23 |
| 3 | IO22 | I/O | GPIO22 |
| 4 | TX | I/O | GPIO1, U0TXD |
| 5 | RX | I/O | GPIO3, U0RXD |
| 6 | IO21 | I/O | GPIO21 |
| 7 | GND | G | Ground |
| 8 | IO19 | I/O | GPIO19 |
| 9 | IO18 | I/O | GPIO18 |
| 10 | IO5 | I/O | GPIO5 |
| 11 | IO17 | I/O | GPIO17 3 |
| 12 | IO16 | I/O | GPIO16 3 |
| 13 | IO4 | I/O | GPIO4, ADC2_CH0, TOUCH_CH0 |
| 14 | IO0 | I/O | GPIO0, ADC2_CH1, TOUCH_CH1, Boot |
| 15 | IO2 | I/O | GPIO2, ADC2_CH2, TOUCH_CH2 |
| 16 | IO15 | I/O | GPIO15, ADC2_CH3, TOUCH_CH3, MTDO |
| 17 | D1 | I/O | GPIO8, D1 2 |
| 18 | D0 | I/O | GPIO7, D0 2 |
| 19 | CLK | I/O | GPIO6, CLK 2 |
Note:
There are three mutually exclusive ways to provide power to the board:
The ESP32 can be programmed using various platforms, such as the Espressif IDE, Thonny IDE, PlatformIO with Visual Studio Code, and the Arduino IDE. A quick search on Google will yield numerous online tutorials covering these platforms. Some notable examples include:
Once you have installed ESP Boards via the Board Manager of Arduino IDE, you can find various example projects, including Blink, Digital Read Serial, Analog Read Serial, Button, PWM, WiFI Web Server, WiFi Web Client, etc.
From the Arduino IDE, go to Tools > Board and select esp32 > ESP32 Dev Module. Once you have the ESP32 board chosen, go to File > Examples. Inside that folder, you will find various example sketches for different functionalities like WiFi, Bluetooth, Sensors, and more.
