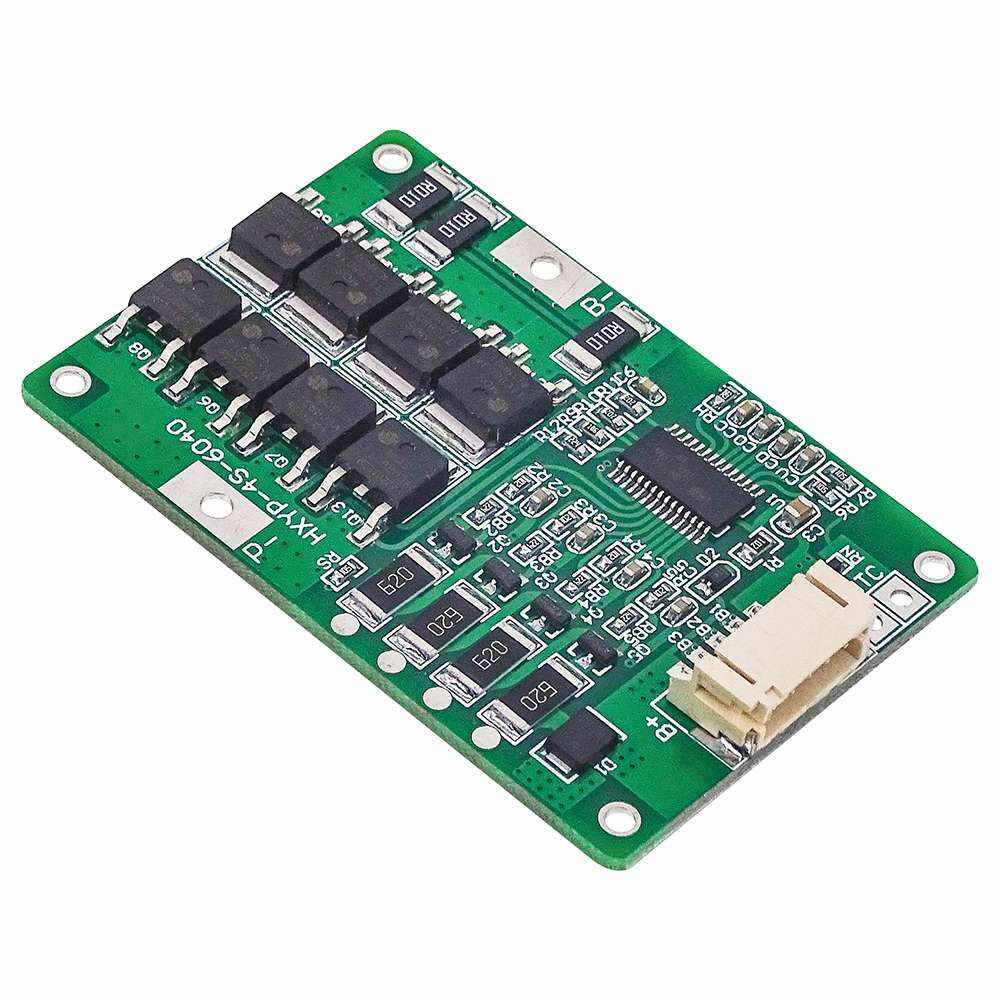

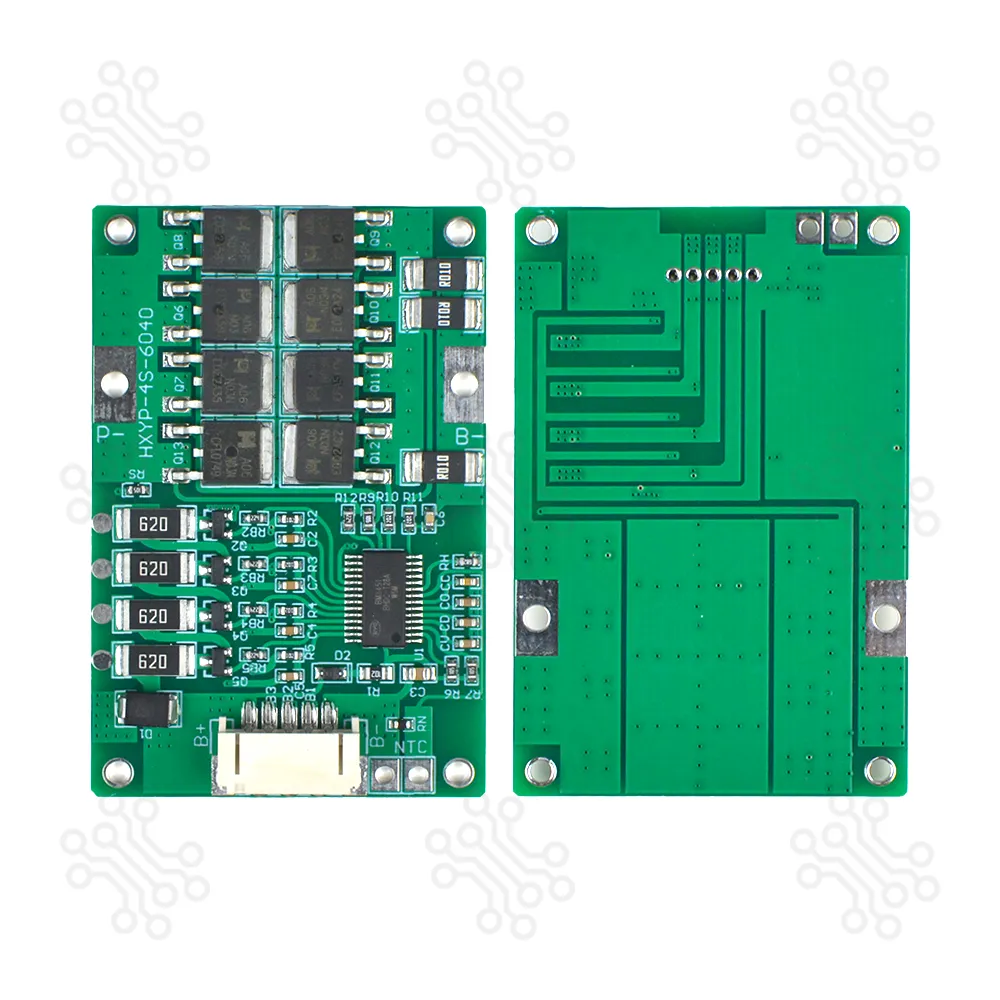

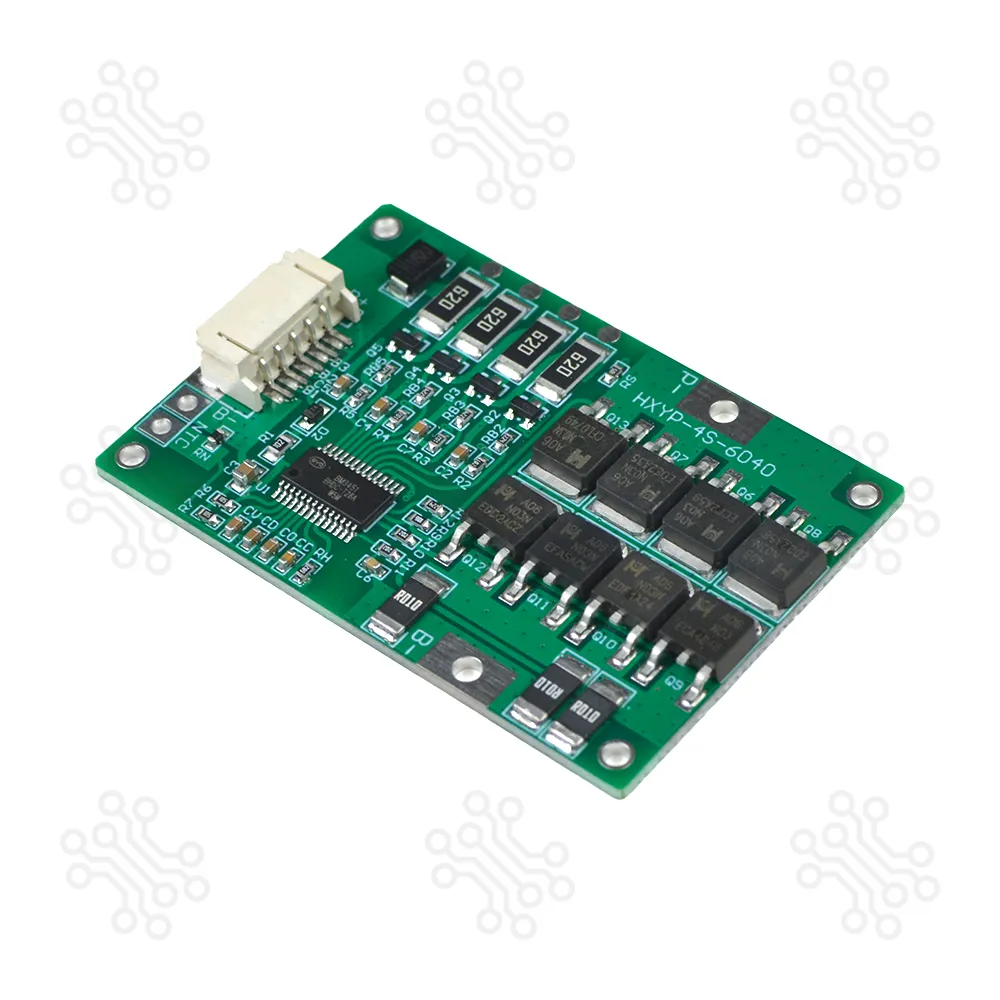

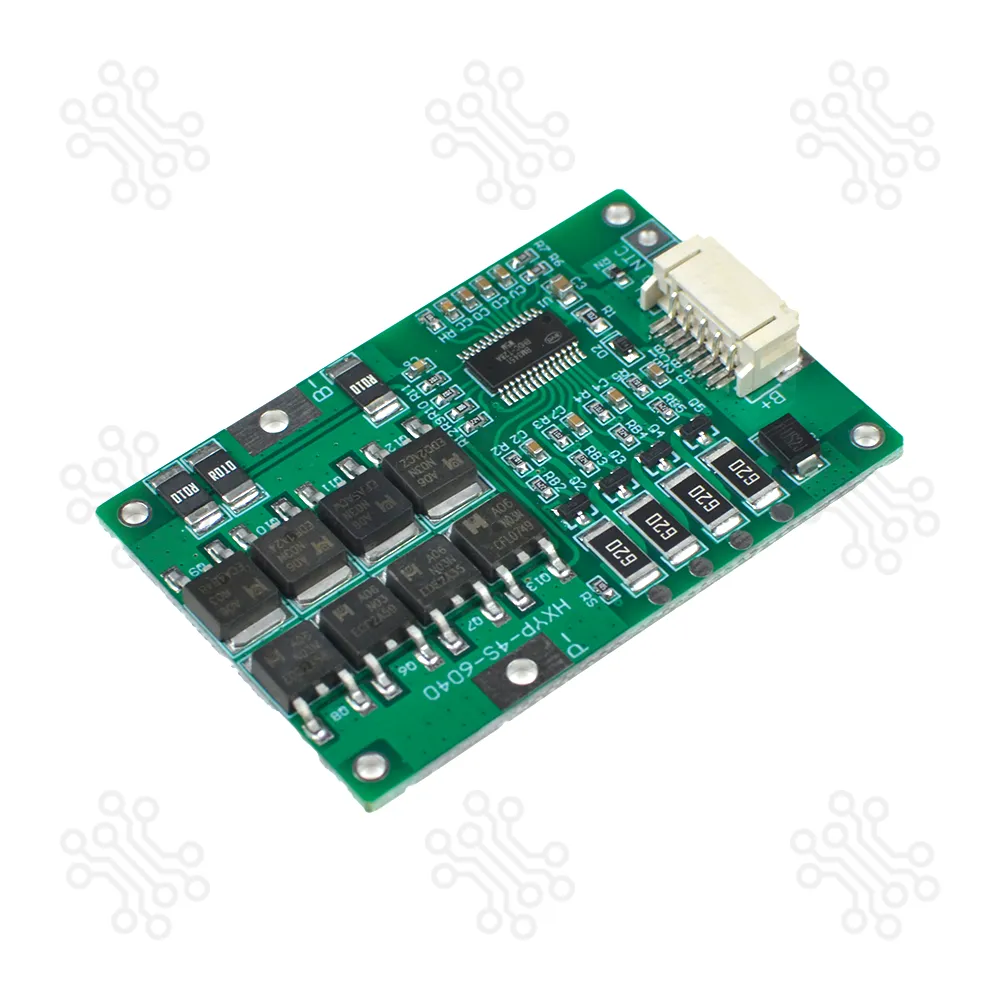

The LifePO4 4S 12.8V Lithium Iron Phosphate Battery Protection Board (BMS) is designed to provide reliable protection and management for 4-cell (4S) LiFePO4 battery packs. It safeguards the battery against overcharging, over-discharging, excessive current, and other abnormal operating conditions, helping to extend battery life and improve overall system safety.
This protection board is suitable for various LiFePO4 battery-powered applications, including solar energy storage systems, backup power supplies, electric vehicles, portable power stations, DIY battery packs, and industrial equipment.
| Parameter | Specification |
|---|---|
| Product Type | LiFePO4 Battery Protection Board (BMS) |
| Battery Configuration | 4S (4 Cells in Series) |
| Nominal Battery Voltage | 12.8V |

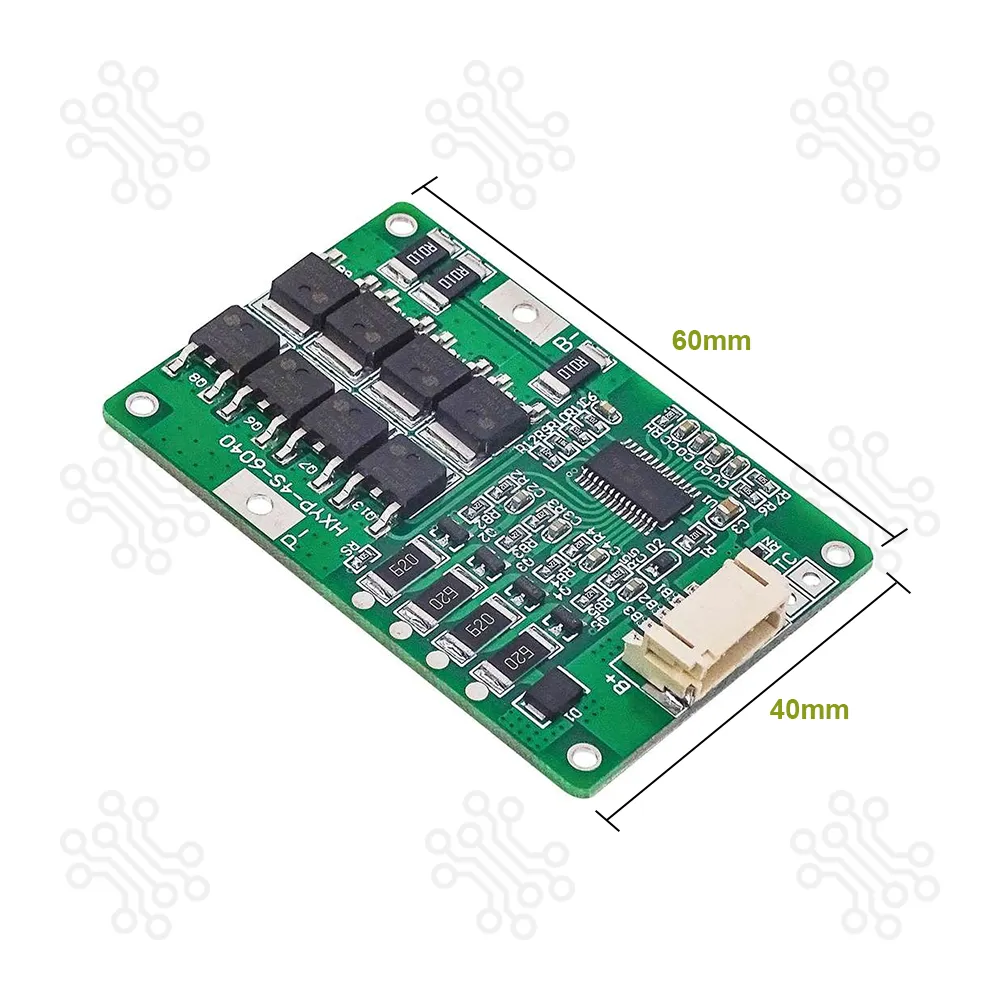

| Dimensions | 60 × 40 × 7 mm |
| Maximum Working Current | 18A |
| Upper Limit Instantaneous Current | 20A |
| Over-Charge Protection Voltage | 3.75V ± 0.05V (per cell) |
| Over-Discharge Protection Voltage | 2.35V ± 0.05V (per cell) |
| Charging Voltage | 14.4V – 15V |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |

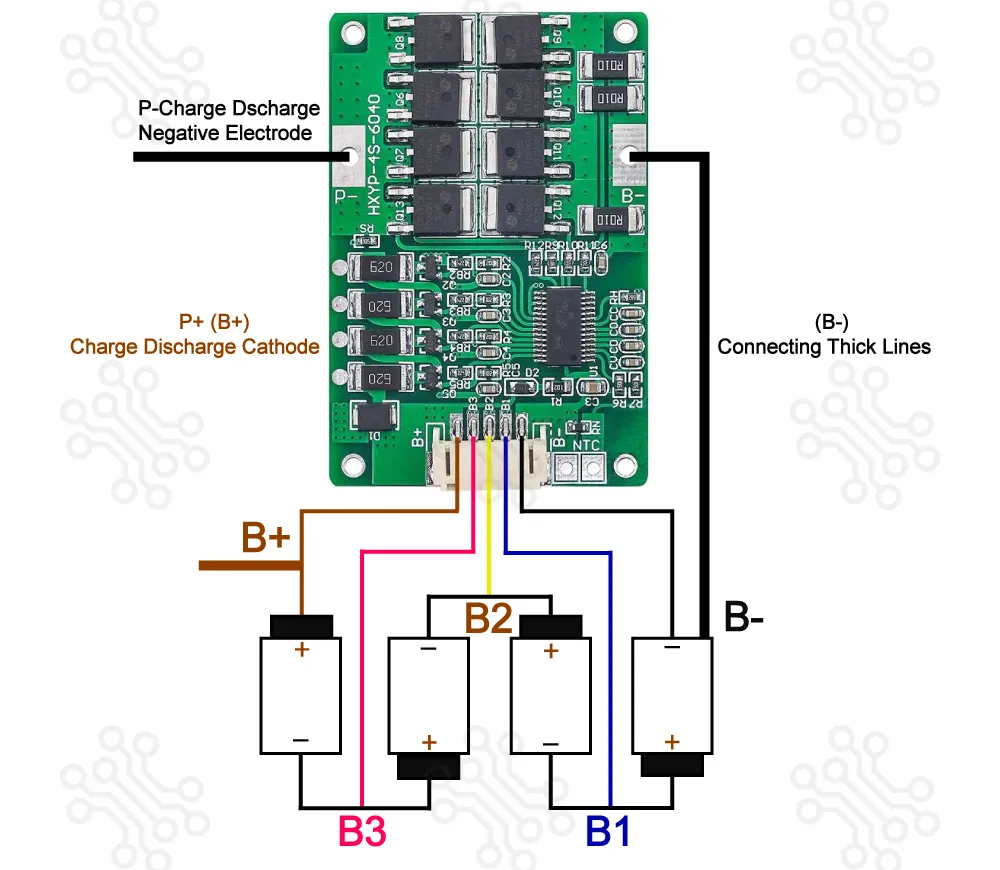

This diagram illustrates how to correctly connect a 4S (4-Cell Series) LiFePO4 Battery Protection Board (BMS) to build a safe and balanced 12.8V battery pack.

Battery Cell Configuration (Series): Four LiFePO4 cells are connected in series (positive to negative) to reach the nominal 12.8V output.
Balance Wiring (Thin Lines): These wires connect to the white sampling plug on the BMS to monitor and balance each individual cell:
B+ (Red): Connects to the main positive terminal of the first cell.
B3 (Pink): Connects to the junction between Cell 1 and Cell 2.
B2 (Yellow): Connects to the junction between Cell 2 and Cell 3.
B1 (Blue): Connects to the junction between Cell 3 and Cell 4.
B- (Black): Connects to the main negative terminal of the last cell.
Main Power Input/Output (Thick Lines): * P+ (B+): Acts as the Common Positive Cathode for both charging the battery and discharging to your load.
P- (Black Wire): Acts as the Common Negative Electrode for both the charger and your load. All safety cut-offs (overcharge/over-discharge) are managed through this port.
