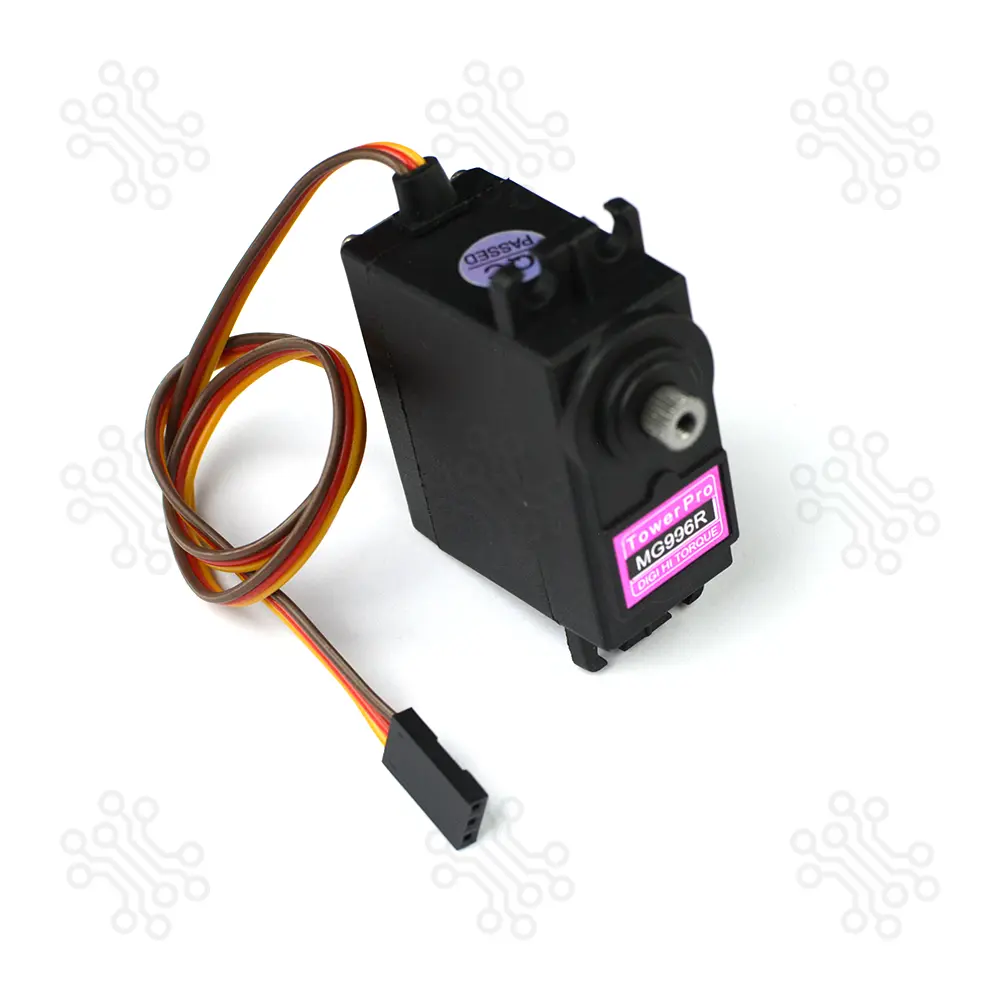

The MG996R is a high-performance digital servo motor designed for applications requiring high torque, precision, and durability. As the successor to the MG995, this model features a redesigned PCB and IC control system, offering significantly improved accuracy, "dead bandwidth" performance, and precise centering.
Engineered for versatility, this motor supports a full 180-degree rotation, providing a wide range of motion for complex movements. Its robust metal gearing and dual ball-bearing design ensure maximum strength and longevity, making it an ideal choice for robotics, RC vehicles, and industrial prototyping.
| Feature | Specification |
|---|---|
| Operating Voltage | 4.8 V to 7.2 V |
| Stall Torque (4.8V) | 9.4 kg-cm |
| Stall Torque (6.0V) | 11 kg-cm |
| Operating Speed (4.8V) | 0.255 sec / 90° (no load) |
| Operating Speed (6.0V) | 0.195 sec / 90° (no load) |
| Gear Type | Metal & Plastic Gears |
| Bearing Type | Double Ball Bearing |
| Dead Band Width | 5 μs |
| Operating Current (Idle) | 500 mA – 900 mA (at 6V) |
| Stall Current | 2.5 A (at 6V) |
| Rotation Angle | 180° |
| Connector Wire | Heavy Duty, 11.81" (300 mm) |
| Weight | 55 g |

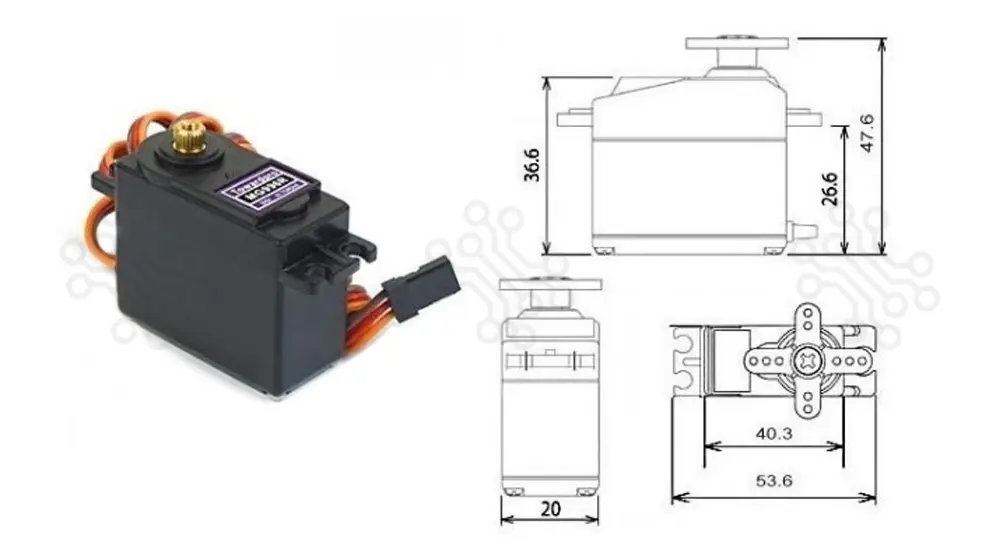

| Dimensions | 40.7 × 19.7 × 42.9 mm |
| Temperature Range | 0 °C to 55 °C |

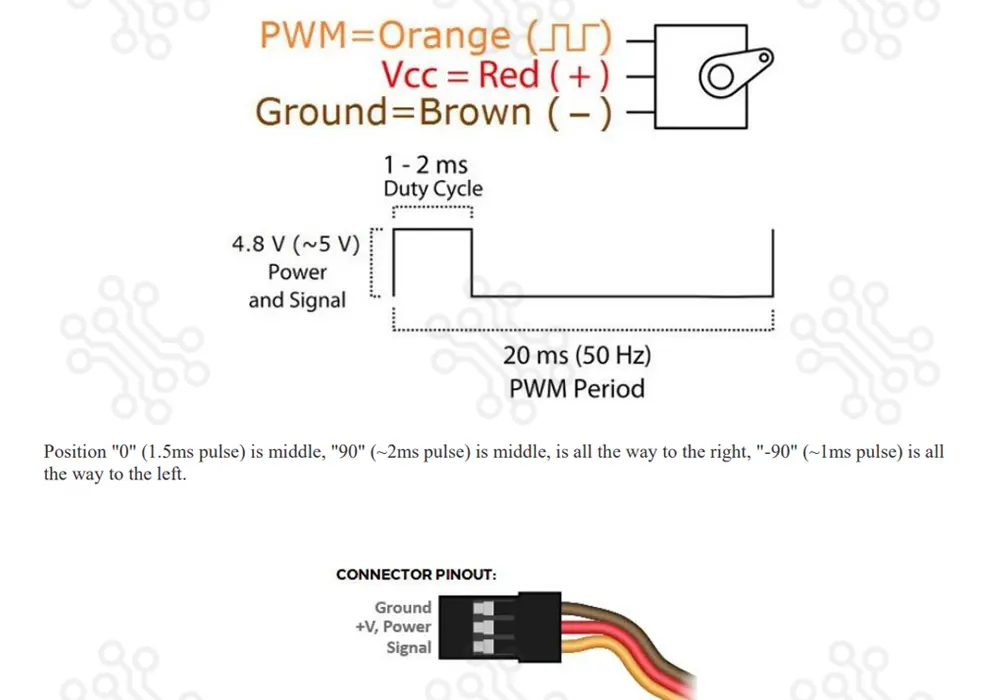

The MG996R utilizes a standard 3-wire interface for power and control:
