The SONOFF SNZB-06P Zigbee Human Presence Sensor is a smart device that uses 5.8GHz microwave radar technology to detect both movement and stationary human presence with high accuracy. Unlike traditional PIR sensors, it can sense even slight movements like breathing or small gestures, ensuring reliable presence detection.
It offers a wide detection range, making it suitable for rooms, offices, and commercial spaces. With Zigbee 3.0 support, it provides stable, low-power communication and easy integration with smart home systems for automation such as lighting control and device triggering.
Its energy-efficient design helps reduce power consumption by activating connected devices only when human presence is detected.
| LED Indicator Status | Status Instruction |
|---|---|

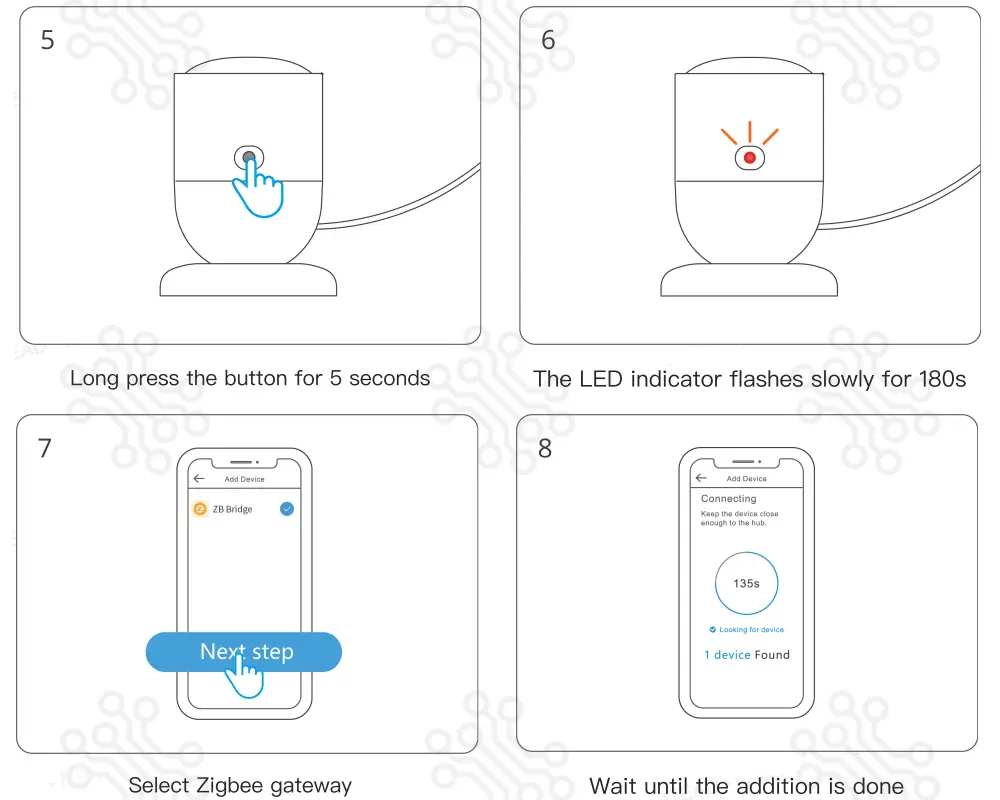

| Flash slowly for 180 seconds | First-time power on or press and hold button for 5s to enter pairing mode |
| Keep on for 3 seconds then turn off | Paired successfully |
| Slow flash then stay off | Distribution failure or timeout |
| Flash once quickly | Not added to gateway; short press the button |
| Flash twice quickly | Added to gateway and online; short press the button |
| Flash slowly for 30 seconds | Abnormal communication |
| Parameter | Specification |
|---|---|
| Model | SNZB-06P |
| MCU | EFR32MG22 |
| Input | 5V ⎓ 1A |
| Interface Type | Type-C |
| Colour | White |
| Product Dimension | 44.2 × 44.2 × 59 mm |
| Net Weight | 31g |
| Casing Material | PC+ABS |
| Wireless Connection | Zigbee 3.0 (IEEE 802.15.4) |
| Pairing Time | 180s |
| Communication Distance | Up to 30m (Indoor) |
| Applicable Place | Indoor |
| Working Temperature | -10°C ~ 60°C |
| Working Humidity | 0~90% RH (Non-condensing) |
| Working Height | Less than 5000m |
| Certification | CE / FCC / ISED / RoHS |
| Executive Standard | EN IEC 62368-1 |
⚠️ Please allow 3% measuring deviation.

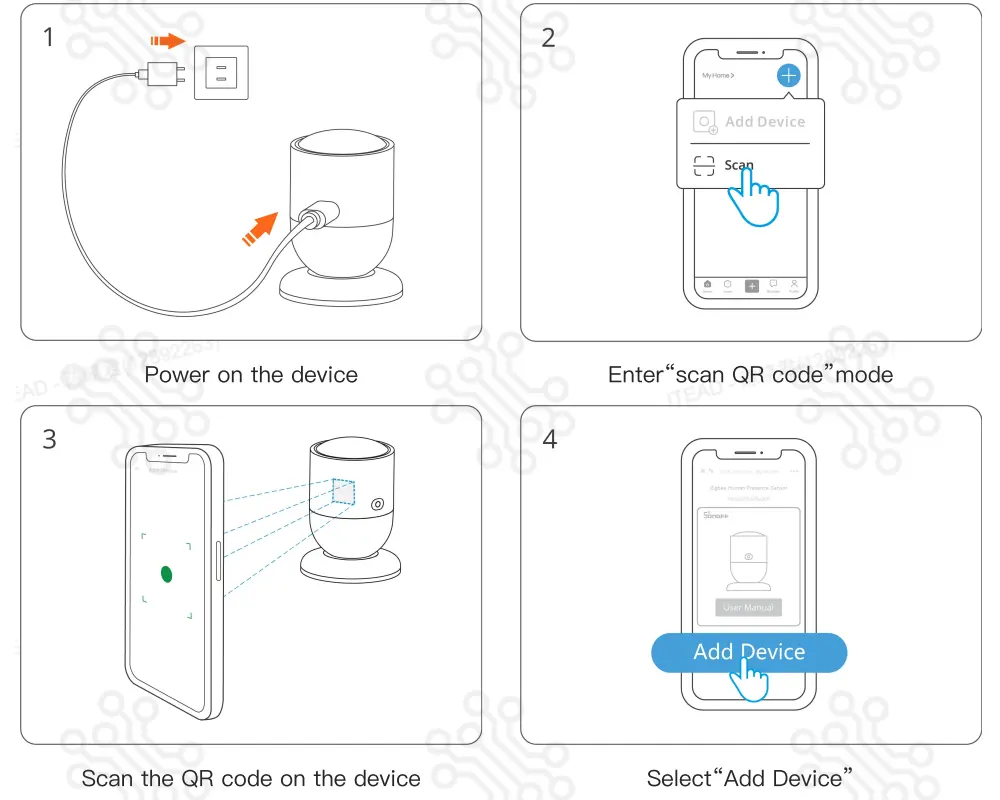

First, open the App Store or Play Store on your phone and download the eWeLink app.
Matched Gateways
Compatible with: SONOFF ZBBridge, ZBBridge-P, NSPanel PRO, AIBridge, ZBDongle-P, ZBDongle-E
Third-party support: Amazon Echo Plus (2nd Gen), Echo Show (2nd Gen)Also works with other Zigbee 3.0 compatible gateways.
Note: Some gateways may display it as a motion sensor.
Communication Distance Check
Install the device in your desired location and press the pairing button.
If the LED flashes twice, the device is within a stable Zigbee communication range.

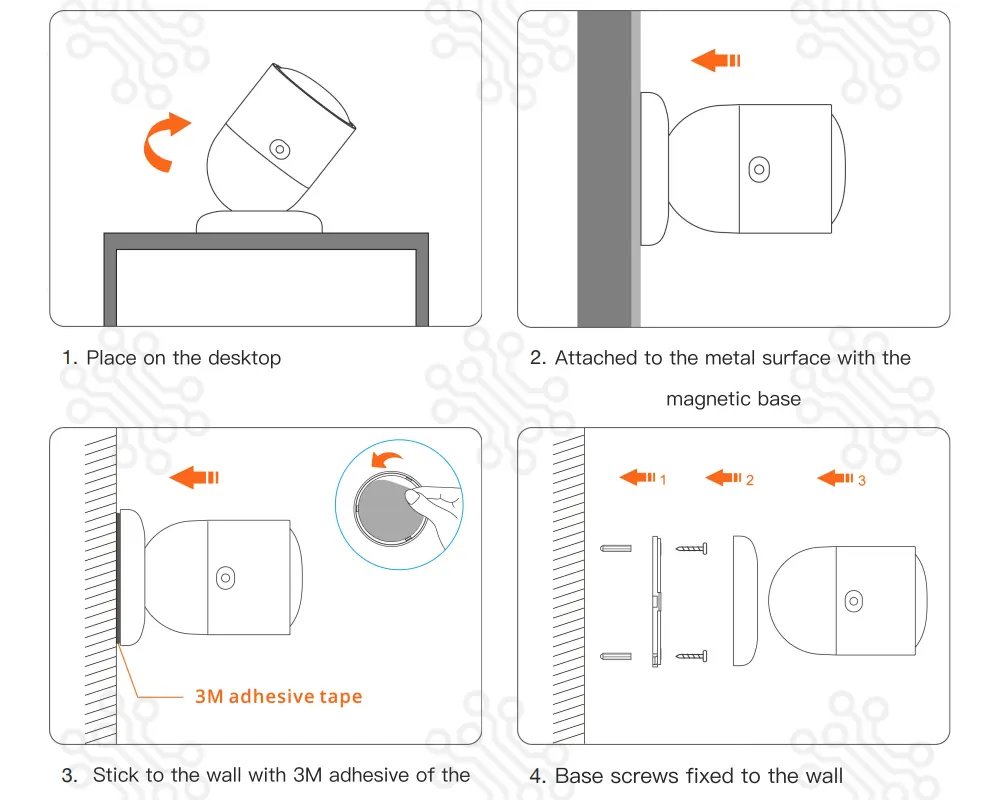

Installation

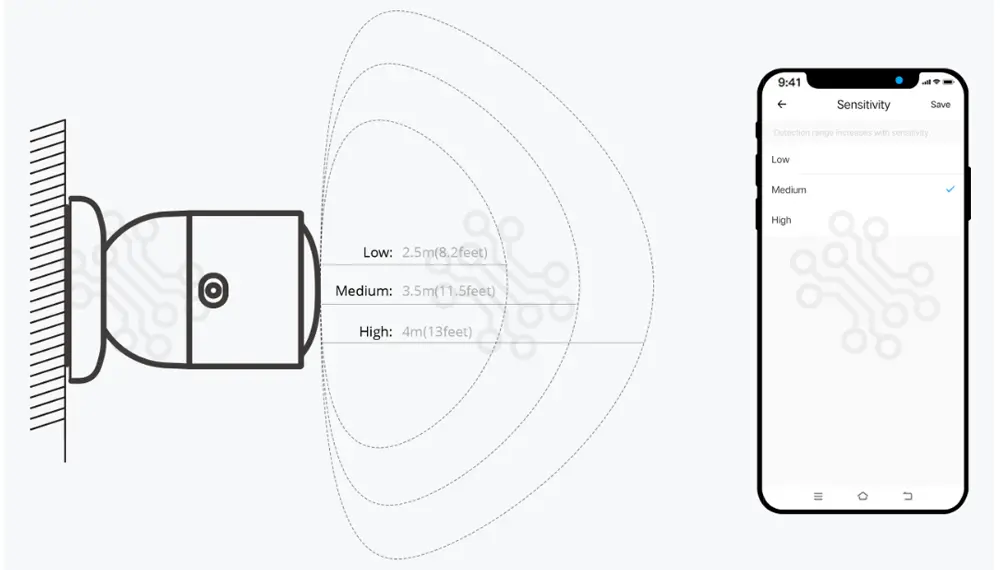

Detection zone
The radar's radial detection distance is approximately 4 meters.
Important Note
Zigbee is a low-power wireless network protocol that operates on the 2.4 GHz band, but its purpose and behavior are quite different from Wi-Fi. It is specifically designed to create small, stable networks that consume minimal energy, making it ideal for smart home and IoT applications.
Zigbee networks are typically built using three types of devices:
| Platform | Presence Detection | History Record | Sensitivity Setting | Custom Detection Duration | Ambient Brightness (Bright/Dim) | Local Scene | OTA |
|---|---|---|---|---|---|---|---|
| ZBBridge | ✓ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ |
| ZBBridge-P | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| ZBBridge-U | ✓ | ✓ | ✓ | ✓ | ✓ | Coming Soon | ✓ |
| NSPanel Pro | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| iHost | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | Coming Soon |
| Zigbee2MQTT | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| ZHA | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| SmartThings | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✗ |
| Other Platforms | ✓ | Not Guaranteed | ✗ | ✗ | ✗ | Not Guaranteed | ✗ |
Documents
