Digital Multimeter UNIT UT890D+ True RMS in Bangladesh
Digital Multimeter UNIT UT890D+ True RMS in Bangladesh

Digital Multimeter UNIT UT890D+ True RMS

SKU: 221031003801

Warranty: 3 Days

৳ 2688.89

Add to Wishlist

Category: Measurement

Share:

Frequently Bought Together

Description of Digital Multimeter UNIT UT890D+ True RMS

The UT890 series 6000-count true RMS digital multimeters are designed with a large LCD display. A typical digital multimeter can't measure pure AC signals, i.e., sinusoidal waveform, accurately. However, a True-RMS meter is the only one that can accurately measure both the sinusoidal and non-sinusoidal AC waveforms like an oscilloscope. If the measured AC characteristics are unknown, a True-RMS meter is the better choice for taking measurements.

The maximum measurable capacitance of this series is 100mF, with a fast response time of less than 12s. The NCV and continuity measurement has acousto-optic indications for better user feedback. Specifically, the UT890D+ has a LIVE function for distinguishing between live and neutral wires. In addition, it is equipped with automatic fuse blown detection and high voltage protection to ensure safety and durability during operation.

For a detailed explanation of True RMS technology, waveform measurement, and practical usage scenarios, read our complete guide here.

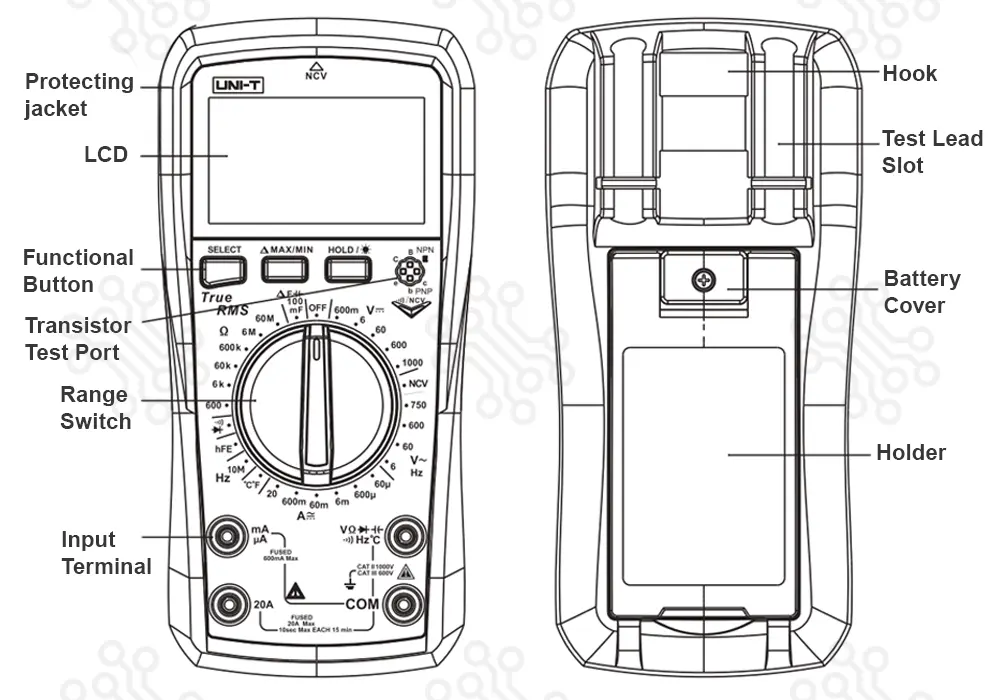

Structure


Special Features

Type Limit Feature
Display Count 6000
Manual Range
NCV
hFE
Diode Test
Continuity Test
Live
True RMS
Fuse Blowing Alarm
Acousto-Optic Indication (NCV / Continuity)
High Voltage False Detection 1000Vrms
Current (AC/DC) Mode Memory
Over-Current Alarm ≥20A
Low Battery Indication ≤2.5V
Data Hold
Max / Min V, A
Auto Power OFF 15 Min
Back Light 30 s

Specification

Specification Range UT890C UT890D+
DC Voltage 600mV / 6V / 60V / 600V / 1000V ±(0.5%+2) ±(0.5%+2)
AC Voltage 6V / 60V / 600V / 750V ±(0.8%+3) ±(0.8%+3)
ACV Frequency 10Hz – 10kHz ±(0.1%+5) ±(0.1%+5)
DC Current 60µA – 20A ±(0.8%+8) ±(0.8%+8)
AC Current 60µA – 20A ±(1%+12) ±(1%+12)
Resistance 600Ω – 60MΩ ±(0.8%+3) ±(0.8%+3)
Capacitance 6nF – 100mF ±(3%+10) ±(3%+10)
Frequency 9.999Hz – 9.999MHz ±(1.0%+5) ±(1.0%+5)
Temperature –40℃ to 1000℃ ±(1.5%+5)
General Specification
Power Supply 1.5V × 2

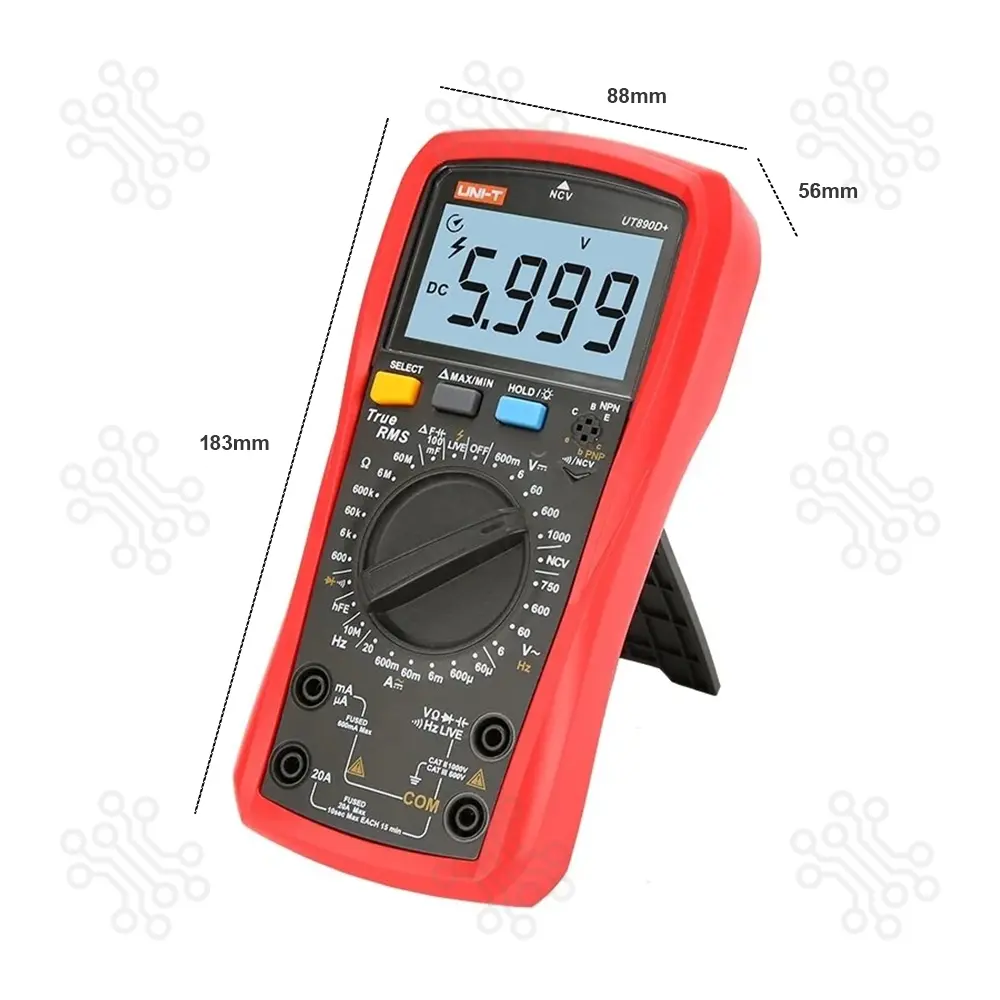

Product Size 183 × 88 × 56 mm
Net Weight   346 g

Where can I purchase a UNI-T UT890D+ Multimeter in Bangladesh?

Here at TechShopBD, we offer a variety of multimeters with different price ranges for updated models and, of course, from international brand suppliers. Find the latest pricing for the Digital Multimeter in Bangladesh. Visit our office today or place your order online for swift delivery to any location across BD.


Applications of UT890D+

  • Electrical and electronic circuit testing
  • Measuring AC/DC voltage, current, and resistance
  • Identifying live and neutral wires (LIVE function)
  • Non-contact voltage detection (NCV)
  • Continuity and capacitance testing
  • Suitable for electricians, technicians, and students

Documents


Packaging Details

  • 1x Multimeter
  • 1x Testing Cable
  • 1x User Manual

Warranty and Replacement

TechShopBD offers up to one year of warranty and replacement support for its products, depending on the supplier(s) and product(s). The specific warranty duration for each product can be found on the respective product page. To be eligible for warranty and replacement support, customers must agree to our terms and conditions.


Attention

Note: This item is non-returnable. If this item arrives damaged or is not functioning properly, please don’t hesitate to contact us to determine if further action is required.
