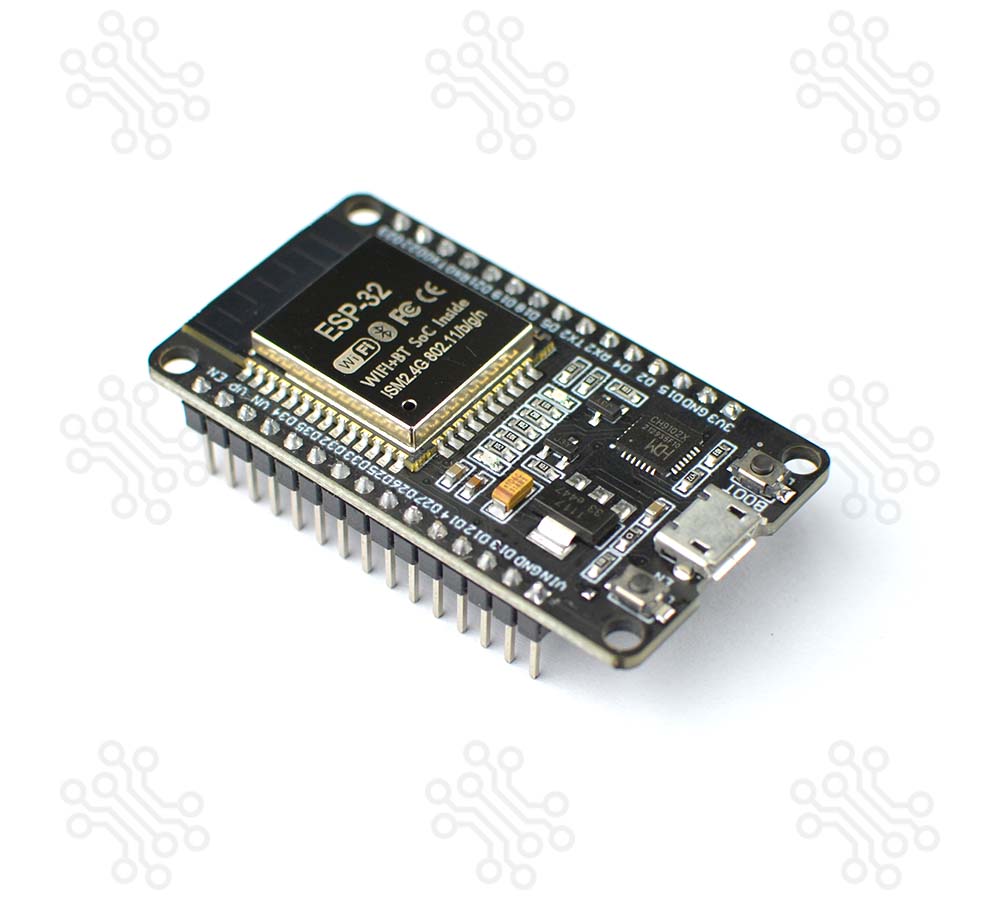

ESP32 DEVKIT V1 in Bangladesh
ESP32 DEVKIT V1 in Bangladesh

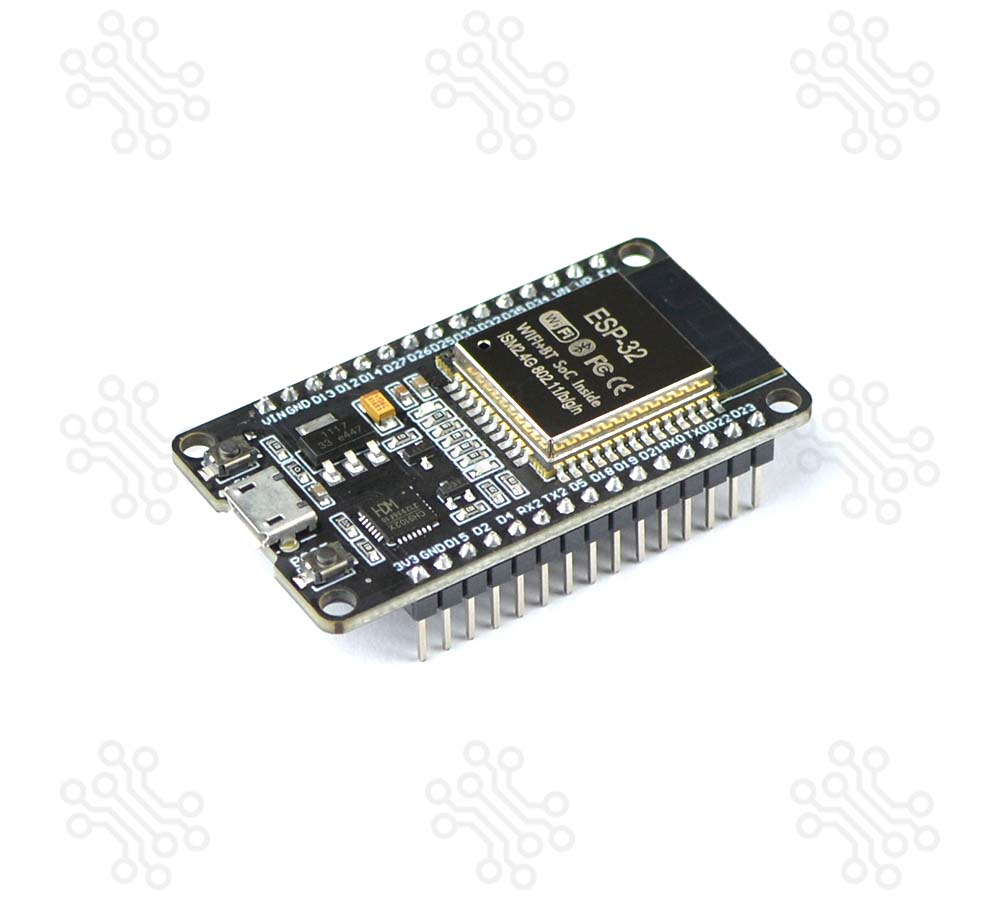

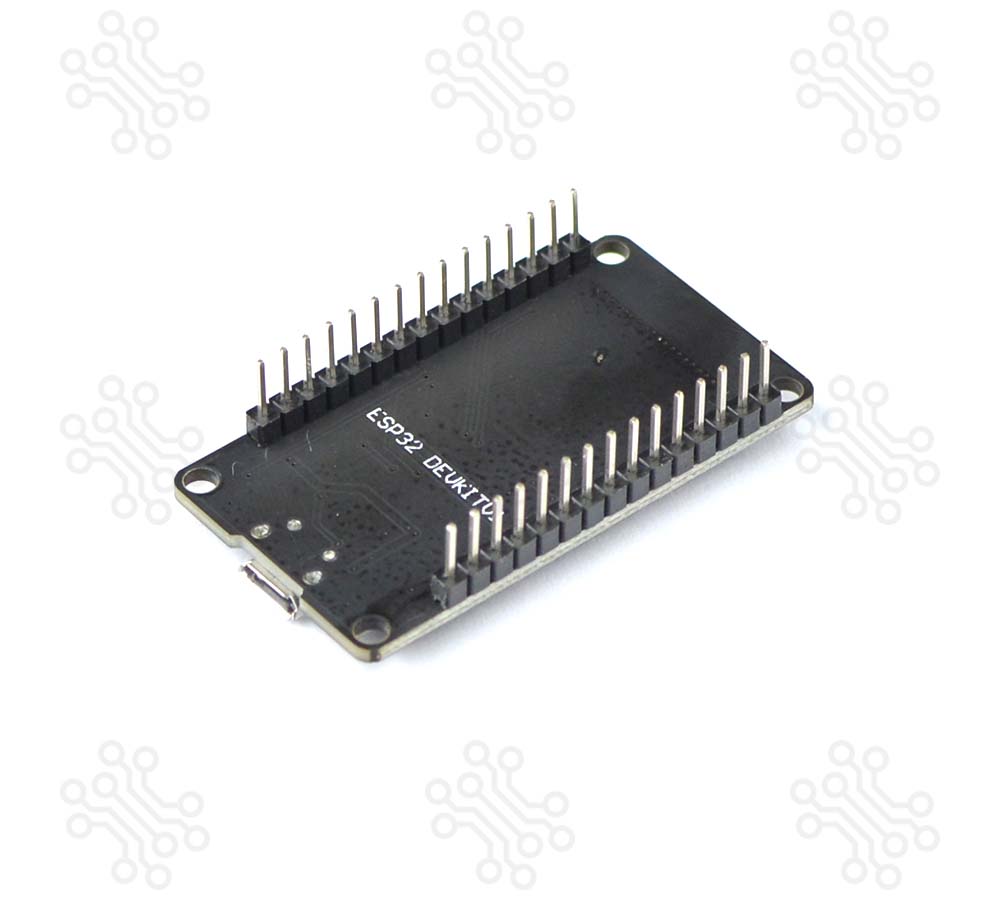

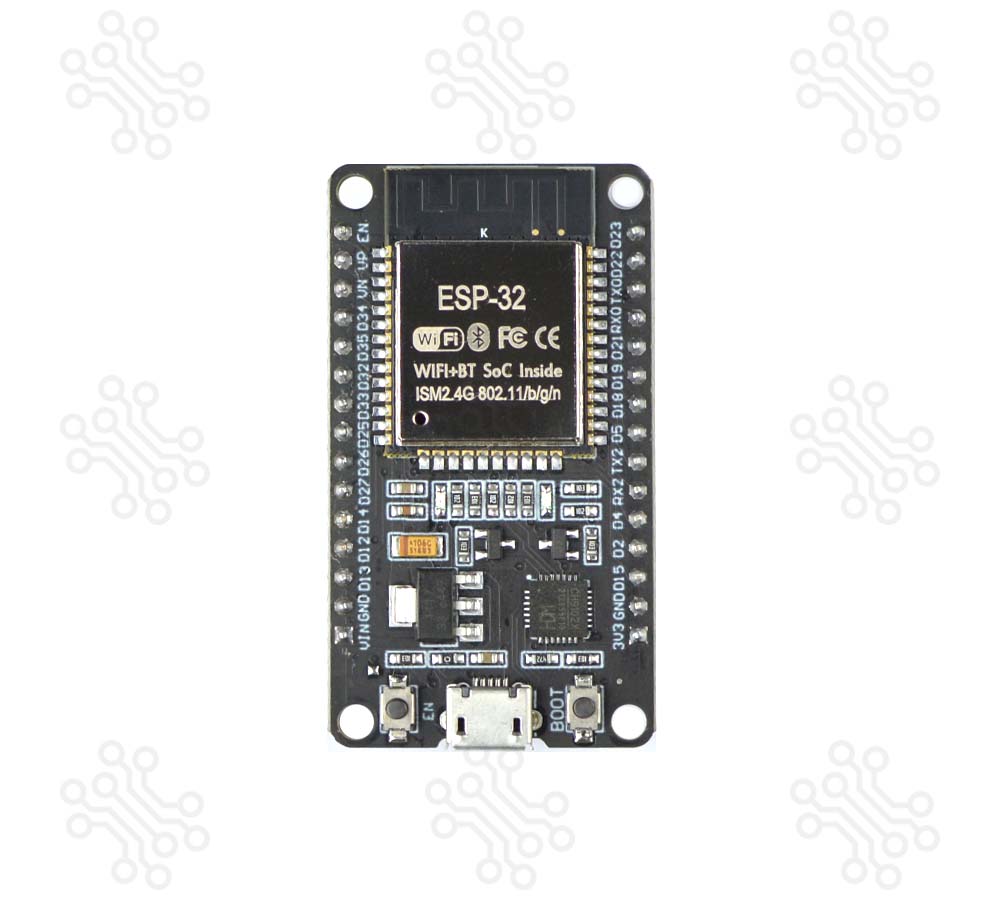

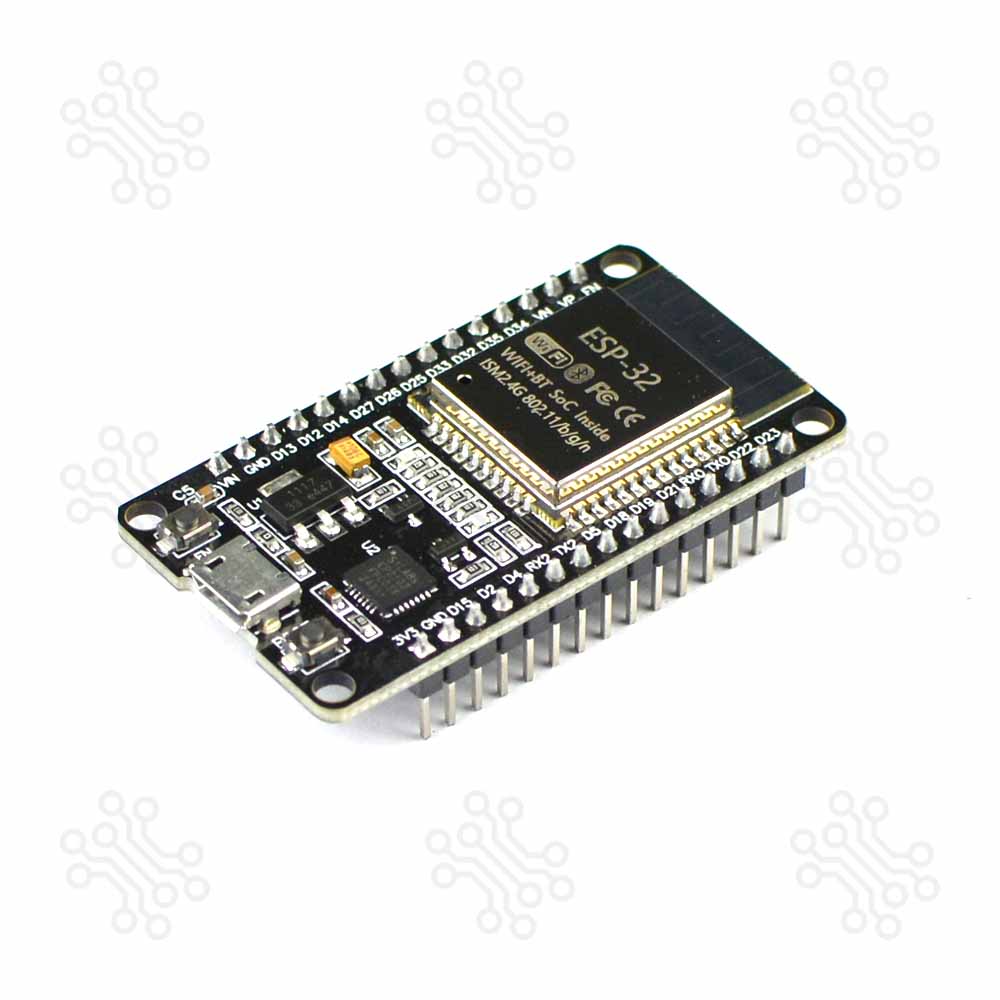

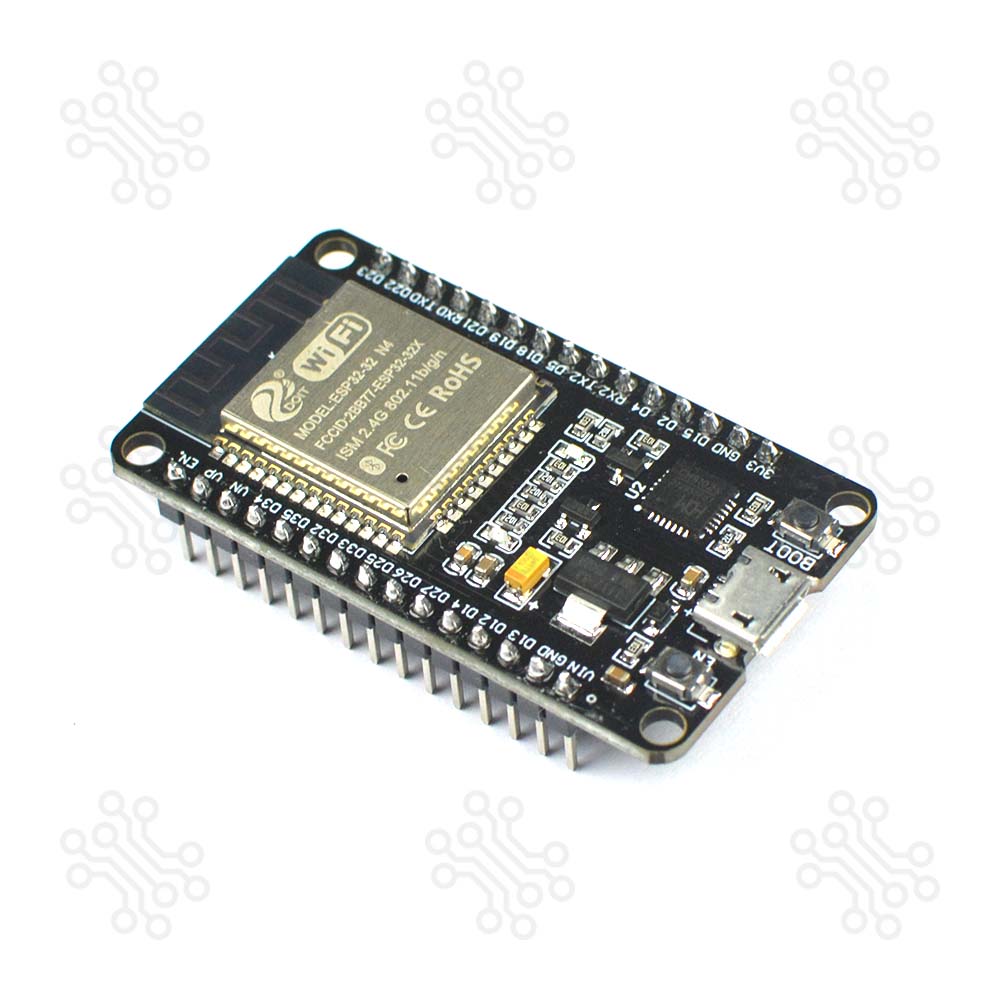

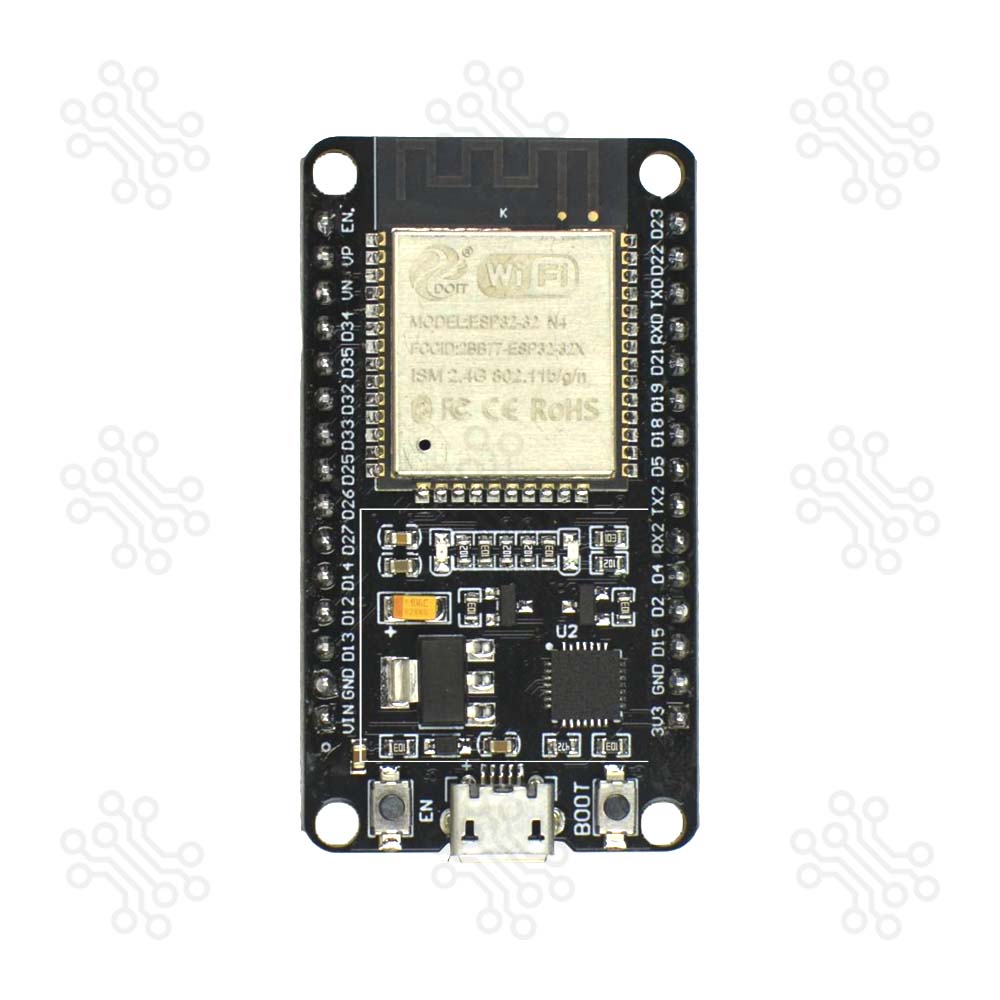

ESP32 DEVKIT V1

SKU: 170820002809

Brand: Made in China

Warranty: 3 Days

Model: Type C 38 Pin SoC Only

৳ 450.06

Add to Wishlist

Category: ESP32

Share:

Frequently Bought Together

Description of ESP32 DEVKIT V1

The ESP32 by Espressif Systems is currently the smallest microcontroller series in the world, featuring built-in WiFi and Bluetooth simultaneously, making it ideal for IoT projects or small electronic applications.

When comparing the ESP32 to the Arduino, Atmel, or PIC, you'll find that the ESP32 offers more pins, a faster processor, and superior overall performance. Some even compare the Raspberry Pi to the ESP32, but the ESP32 is smaller, cheaper, consumes less power, and is more suitable for compact projects.

If you’re just getting started, check out our ESP32 Tutorials in Bangla.


Specification

Parameter Details
Microcontroller ESP-WROOM-32
Processor Xtensa dual-core 32-bit LX6
Clock Speed 240 MHz
RAM 520 KB SRAM, 448 KB ROM, 16 KB SRAM in RTC
Flash Memory 4 MB
WiFi 802.11b/g/n
Bluetooth V4.2
GPIOs 25
Antenna On-board PCB antenna
Programming Port Micro USB
Dimensions 50 × 29 mm (±2)

Compared to others:

Feature ESP32 ESP8266 Arduino UNO
Clock Speed 240 MHz 160 MHz 16 MHz
WiFi Yes Yes No
Bluetooth Yes No No
Memory 520 KB SRAM, 4 MB Flash 160 KB SRAM, 4 MB Flash 2 KB SRAM, 32 KB Flash
GPIOs 25 17 20

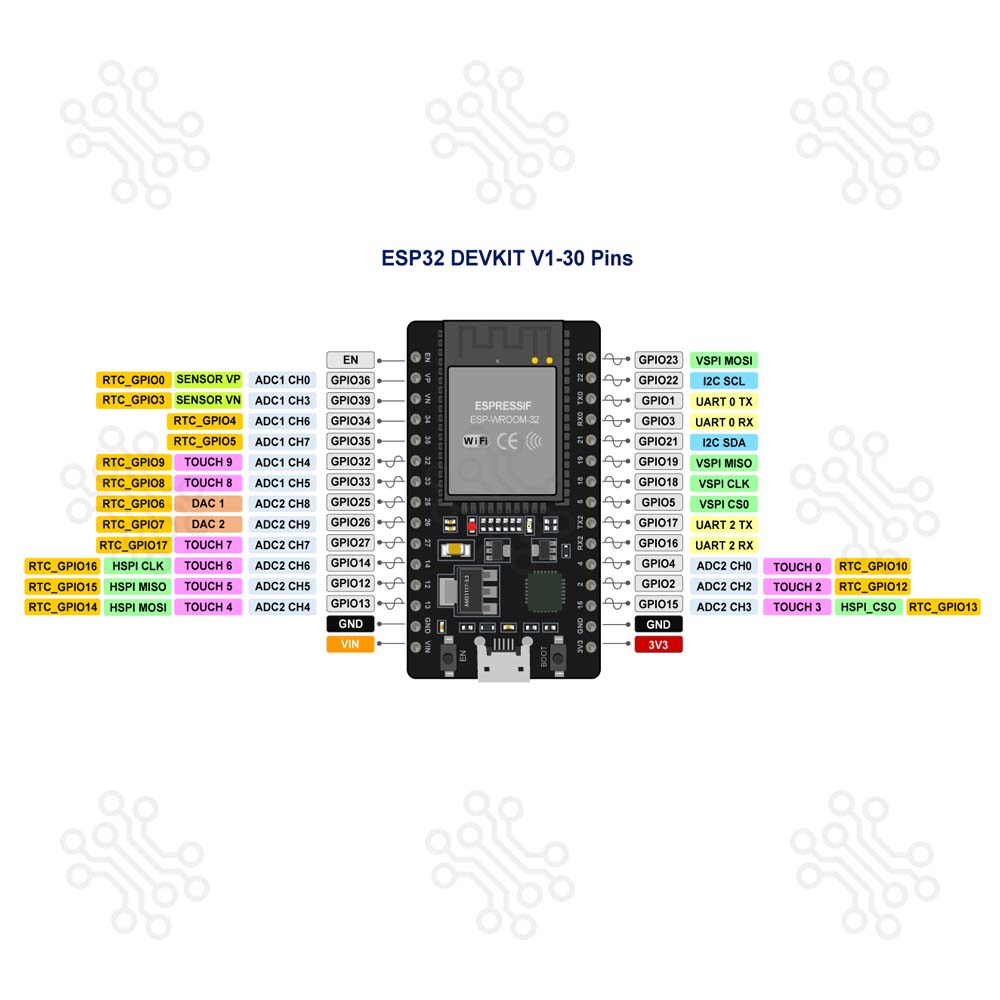

ESP32 Pin Diagram

All of the 25 GPIOs, including 15 ADC, 2 UART, 25 PWM, 2 DAC, 3 SPI, 1 I2C, 2 I2S, and 9 Touch functionality.

Pin GPIO Alternate Pin Function Safe Remarks
1   EN / RESET
2 GPIO36 VP / ADC1_0 ⚠️ Input only
3 GPIO39 VN / ADC1_3 ⚠️ Input only
4 GPIO34 ADC1_6 ⚠️ Input only
5 GPIO35 ADC1_7 ⚠️ Input only
6 GPIO32 ADC1_4 / Touch9 ✔️
7 GPIO33 ADC1_5 / Touch8 ✔️
8 GPIO25 ADC2_8 / DAC1 ✔️
9 GPIO26 ADC2_9 / DAC2 ✔️
10 GPIO27 ADC2_7 / Touch7 ✔️
11 GPIO14 ADC2_6 / Touch6 / HSPI_CLK ✔️
12 GPIO12 ADC2_5 / Touch5 / HSPI_MISO ⚠️ Must be LOW during boot
13 GPIO13 ADC2_4 / Touch4 / HSPI_MOSI ✔️
14 GND
15 VIN   4.8V < VIN < 12V
16 3.3V   600mA
17 GND
18 GPIO15 ADC2_3 / Touch3 / HSPI_CS ⚠️ Must be HIGH during boot, prevents startup log if pulled LOW
19 GPIO2 ADC2_2 / Touch2 / CS ⚠️ Must be LOW during boot and connected to onboard LED
20 GPIO4 ADC2_0 / Touch0 ✔️
21 GPIO16 U2_RXD ✔️
22 GPIO17 U2_TXD ✔️
23 GPIO5 VSPI_CS ⚠️ Must be HIGH during boot
24 GPIO18 SCK ✔️
25 GPIO19 VSPI_MISO ✔️
26 GPIO21 SDA ✔️
27 GPIO22 SCL ✔️
28 GPIO23 VSPI_MOSI ✔️
29 TX0 UART0_TX ⚠️ Used for programming
30 RX0 UART0_RX ⚠️ Used for programming
  • HSPI and VSPI both can be used for SPI interfaces, where VSPI pins are commonly used in standard libraries.
  • All GPIOs (except input-only) can be used as PWM pins.
  • ADC2 pins can’t be used when WiFi is enabled.
  • All DACs have 8-bit resolution.
  • ESP32 has two I2C buses but no dedicated pins. It allows for flexible pin assignment. (GPIO21 and GPIO22 are commonly used.)
  • Pulling LOW in EN, disable the chip (Hardware Reset)

Power Supply

The ESP32 Dev Board V1 features a positive voltage regulator, specifically the AMS1117-3.3, which enables operation with external power sources. This configuration eliminates the need to keep the board connected to your computer for power. When powered via the VIN pin, the input voltage is passed through the regulator, which then converts it to a stable 3.3V output, providing power to the board’s various power rails.

According to the datasheet, the AMS1117-3.3 can safely operate with input voltages ranging from 4.8V to 12V. However, higher input voltages may necessitate additional heat dissipation to prevent overheating. For optimal performance and thermal management, it is recommended to use an input voltage in the range of 5V to 6V.

For more information on the ESP32 power control system, we invite you to explore our Bengali tutorial titled Powering ESP32 with External Power.


How to Program?

The ESP32 can be programmed using various platforms, such as the Espressif IDE, Thonny IDE, PlatformIO with Visual Studio Code, and the Arduino IDE. A quick search on Google will yield numerous online tutorials covering these platforms. Some notable examples include:


ESP32-Based Projects


ESP32 Arduino Examples

Once you have installed ESP Boards via the Board Manager of Arduino IDE, you can find various example projects, including Blink, Digital Read Serial, Analog Read Serial, Button, PWM, WiFI Web Server, WiFi Web Client, etc.

From the Arduino IDE, go to Tools > Board and select esp32 > ESP32 Dev Module. Once you have the ESP32 board chosen, go to File > Examples. Inside that folder, you will find various example sketches for different functionalities like WiFi, Bluetooth, Sensors, and more.


Warranty and Replacement

TechShopBD offers up to one year of warranty and replacement support for its products, depending on the supplier(s) and product(s). The specific warranty duration for each product can be found on the respective product page. To be eligible for warranty and replacement support, customers must agree to our terms and conditions.


Packaging Details

  • 1 × ESP32 DEVKIT V1

Documents


Attention

Note: This item is non-returnable. If this item arrives damaged or is not functioning properly, please don’t hesitate to contact us to determine if further action is required.


Need Help?

Our engineers are available to assist you. If you have any queries, please leave a comment below or call 09678110110 from 09:00 am to 06:00 pm (7 days a week). You can also reach us via WhatsApp or Facebook Inbox
