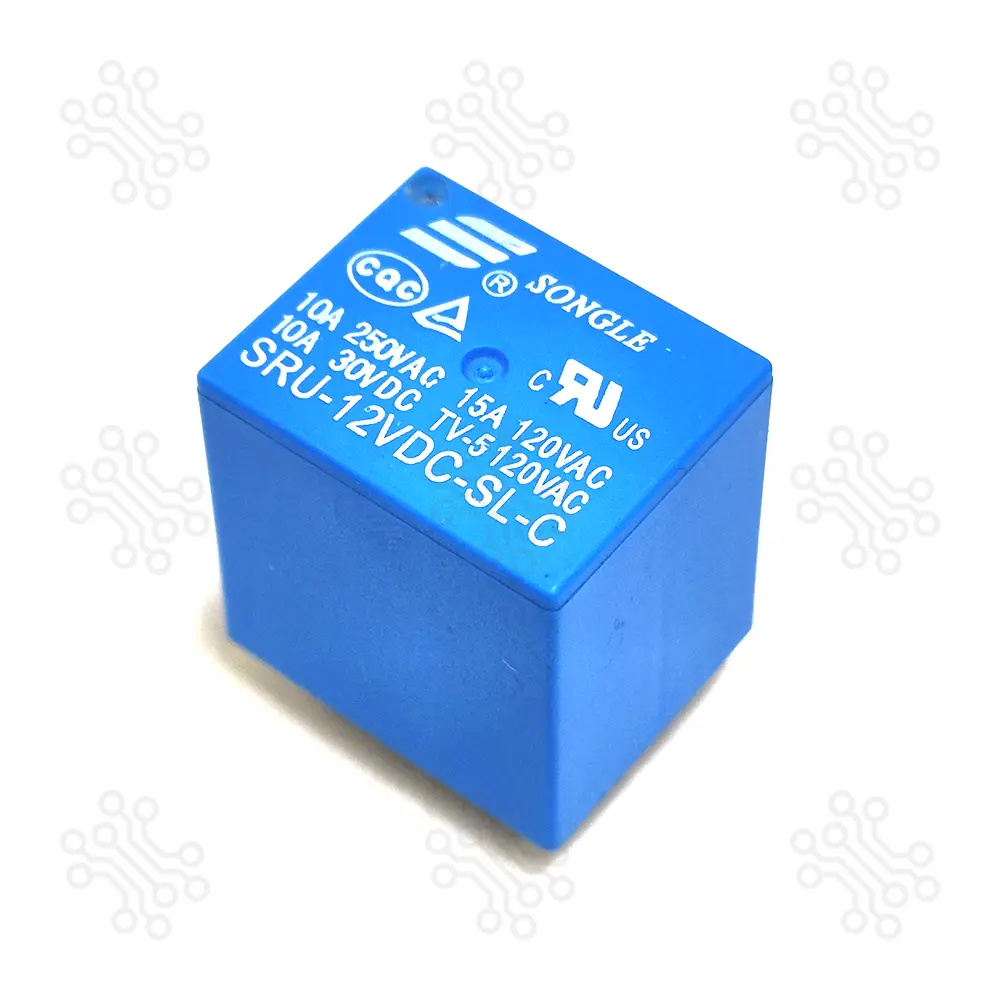

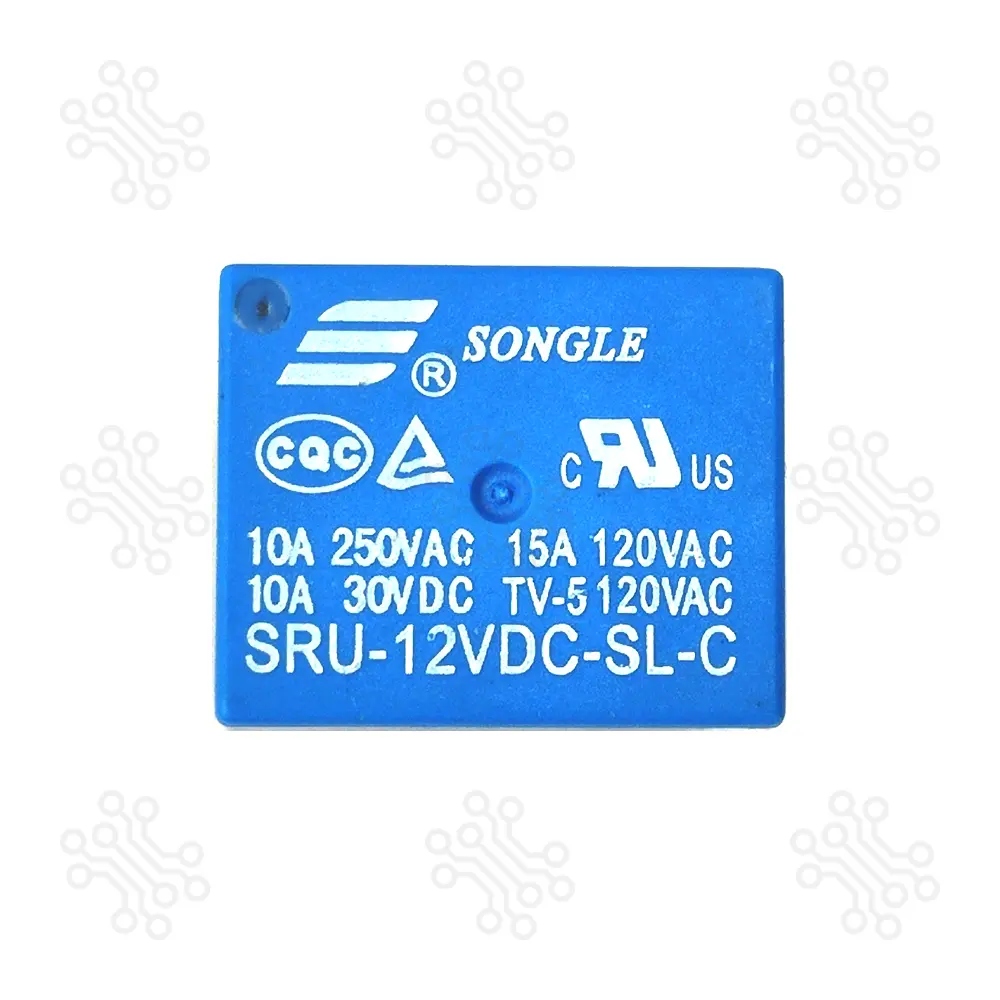

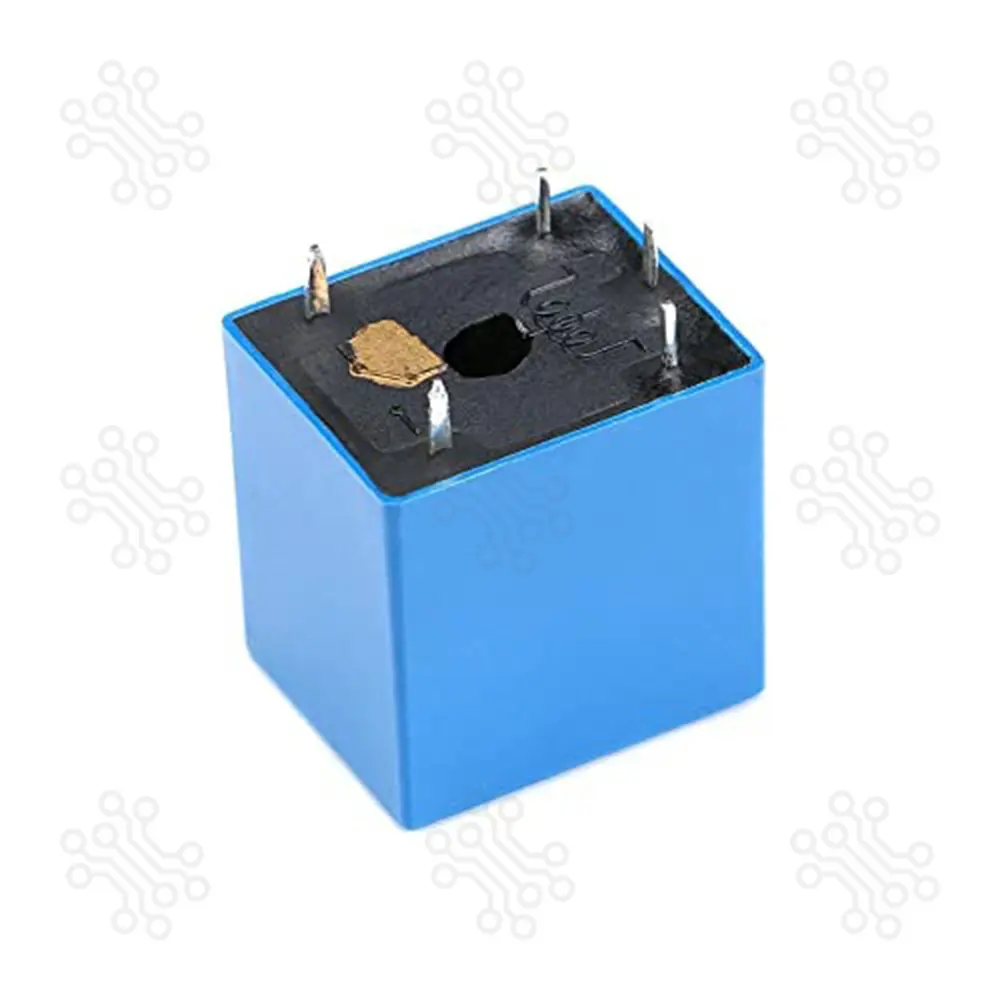

Relay SONGLE 5 Pin 12V 10A  in Bangladesh
Relay SONGLE 5 Pin 12V 10A  in Bangladesh

Relay SONGLE 5 Pin 12V 10A

SKU: 180531003032

Warranty: 3 Days

৳ 40.06

Add to Wishlist

Category: Relay

Share:

Frequently Bought Together

Description of Relay SONGLE 5 Pin 12V 10A

This relay can be used to switch High power (whether AC or DC) to a load by driving the relay coil with a far much lower voltage and current. When Current flows through the relay coil, It makes or breaks its contacts through electromagnetic induction. A relay contacts comprises of the Normally-Open (NO) and Normally Closed (NC) contacts. These refer to the state of the relay contacts when the relay coil is not energized. When driving a relay coil from a digital output or transistor, always connect a diode in reverse bias across the coil of the relay in other to avoid the resulting back-emf that appears across the coil of the relay when its turned off from damaging the digital device or transistor.



Specification:-

  • Trigger Voltage (Voltage across coil) : 12V DC
  • Trigger Current (Nominal current) : 70mA
  • Maximum AC load current: 10A @ 250/125V AC
  • Maximum DC load current: 10A @ 30/28V DC
  • Compact 5-pin configuration with plastic moulding
  • Operating time: 10msec Release time: 5msec
  • Maximum switching: 300 operating/minute (mechanically)
  • 16 MHz.



FEATURES

• Switching capacity available by 10A in spite of small size design for highdensity P.C. board mounting technique.

• UL,CUL,TUV recognized.

• Selection of plastic material for high temperature and better chemical solution performance.

• Sealed types available.

• Simple relay magnetic circuit to meet low cost of mass production.



APPLICATIONS

• Domestic appliance, office machine, audio, equipment, automobile, etc.( Remote control TV receiver, monitor display, audio equipment high rushing current use application.)

Ratings & Reviews of Relay SONGLE 5 Pin 12V 10A

0.00
Out of 5

0 Ratings and 0 Reviews

5 star
0.00%
4 star
0.00%
3 star
0.00%
2 star
0.00%
1 star
0.00%
Your Rating:

Reviews (0)

No reviews yet. Be the first to review this product!

Questions & Answers about Relay SONGLE 5 Pin 12V 10A

Questions answered by Techshop (2)

I'm trusting techshopbd.com I really want to buy, answering these questions will be a big help - Is it a real Songle relay? It's for my UPS. Is it a SRU or SRD series relay? Does it really have that tv-5 rating as shown in the pic? How much one relay with that tv-5 rating weight? After ordering, if I find these does not meet my UPS requirement, can I return them and get the money back? If I'm confirmed I'll get the money back, and can return them, I'll order!!

By mtslug20 on 02 Mar 2026

Our team will be in touch with you shortly to address all of your questions.

By TechShopBD on 02 Mar 2026

Is it a real Songle relay and have that tv-5 rating as shown in the pic? I want to use it in my UPS.

By mtslug20 on 01 Mar 2026

You may contact our technical team for assistance with any questions or technical clarifications you may have.

By TechShopBD on 02 Mar 2026
